Product Specifications
Model Number | Defensive Barriers |

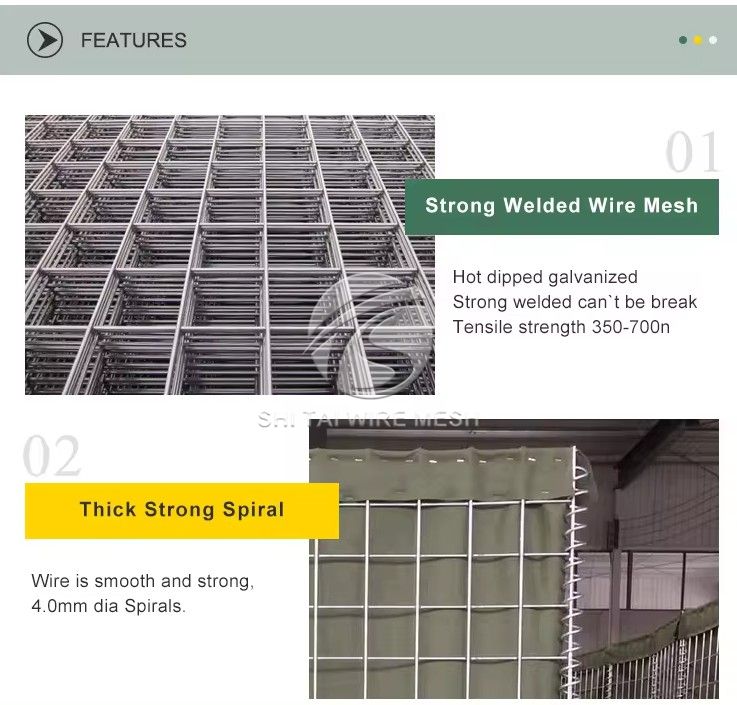

Material | Hot dipped Galvanized coated wire or Galfan coated |
Processing Service | Welding, Cutting |
Surface treatment | Hot Dipped Galvanized galfan gabion |
Color | Green and beige |

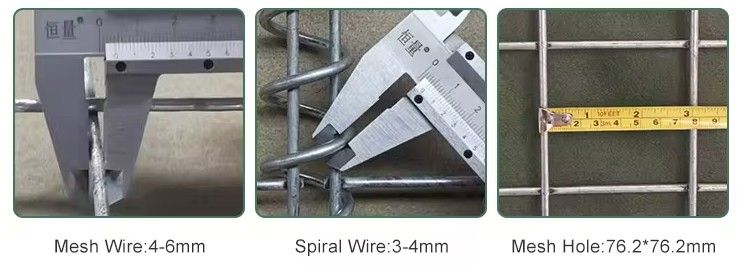

Mesh size | 50*50/100*100/75*75/50*100mm |
Wire diameter | 4-6mm |
Standard | BS EN 10218-2 : 2012 standard |
Aperture | 75*75mm, 76 . 2 * 76 . 2mm 80*80mm etc |

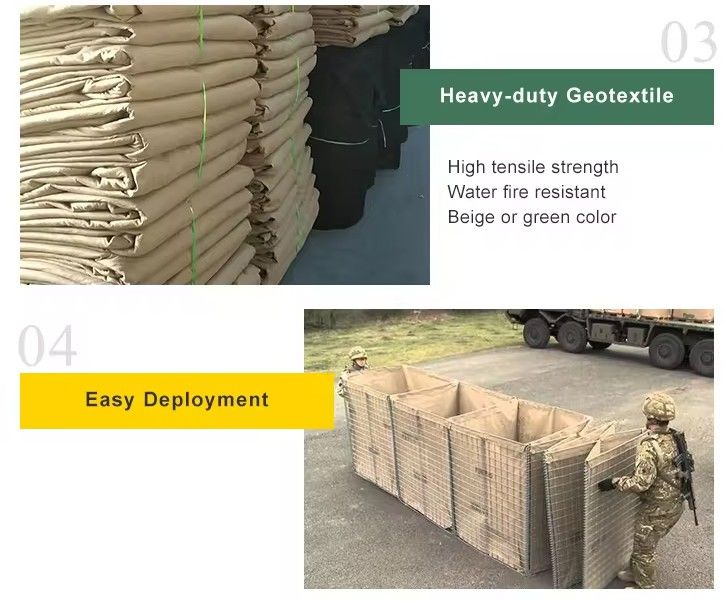

Gram Weight of geotextile | 250g / m² , 300g / m² etc |
Hole Shape | Square |
Tensile Strength | 350N-700N |
Usage | Sand bag gabion wall |
Aperture | 75*75mm, 76 . 2 * 76 . 2mm 80*80mm etc |
Can't find what you were looking for?
We can customize the product for you, determine the wire diameter, aperture, length and width, color, welcome to contact

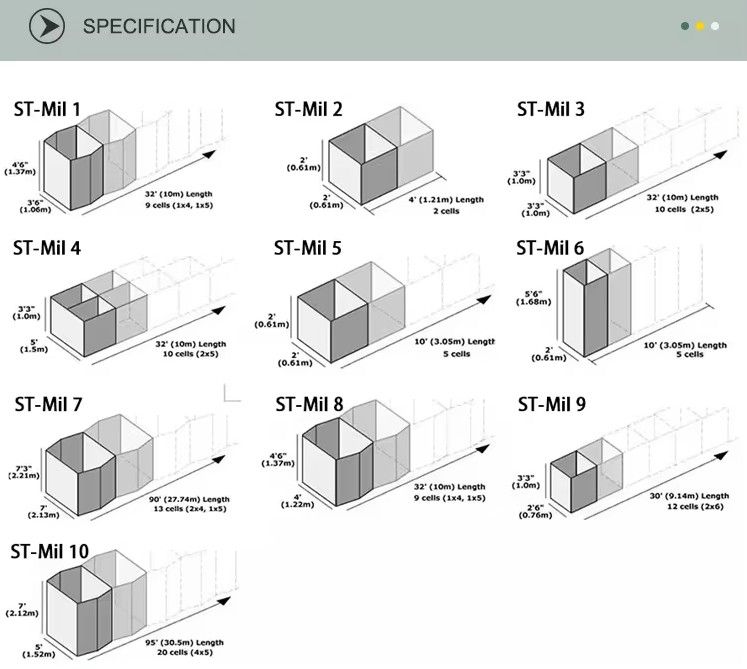

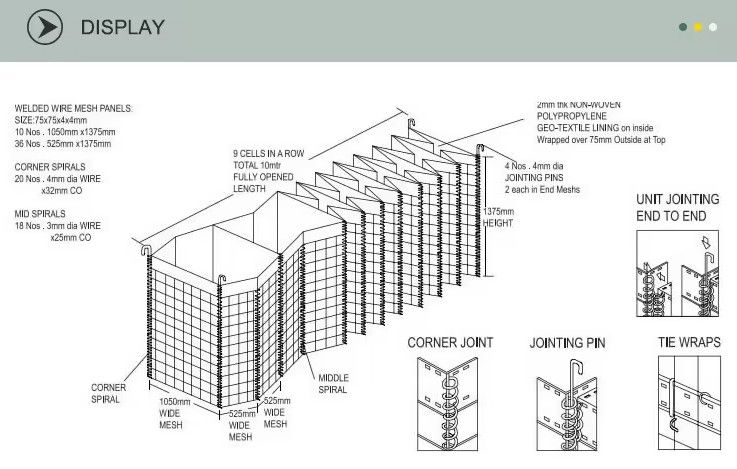

| Model | Height(M) | Width(M) | Length(M) | Number of cells |
| ST-1(Mil 1) | 1.37 | 1.06 | 1 | 5+4=9 cells |
| ST-2(Mil 2) | 0.61 | 0.61 | 1.21 | 2 cells |
| ST-3(Mil 3) | 1 | 1 | 10 | 5+5=10 cells |
| ST-4(Mil 4) | 1 | 1 | 10 | 5+5=10 cells |
| ST-5(Mil 5) | 0.61 | 0.61 | 3.05 | 5 cells |
| ST-6(Mil 6) | 1.68 | 0.61 | 3.05 | 5 cells |
| ST-7(Mil 7) | 2.21 | 2.13 | 27.74 | 5+4+4=13 cells |
| ST-8(Mil 8) | 1.37 | 1.22 | 10 | 4+5=9 cells |
| ST-9(Mil 9) | 1 | 0.76 | 9.14 | 6+6=12 cells |
| ST-10(Mil 10) | 2.12 | 1.52 | 30.5 | 5+5+5+5=20 cells |
Contact us for discounts and different specifications.
Packing & Delivery

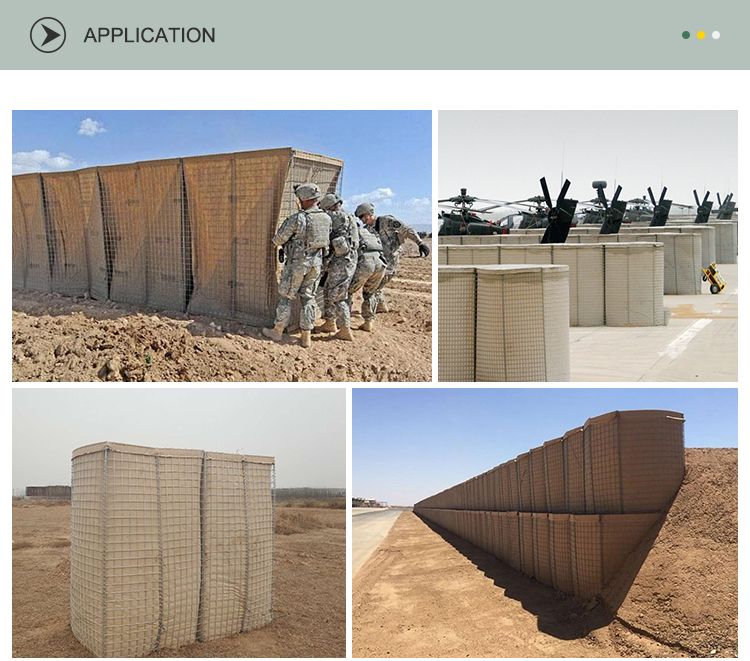

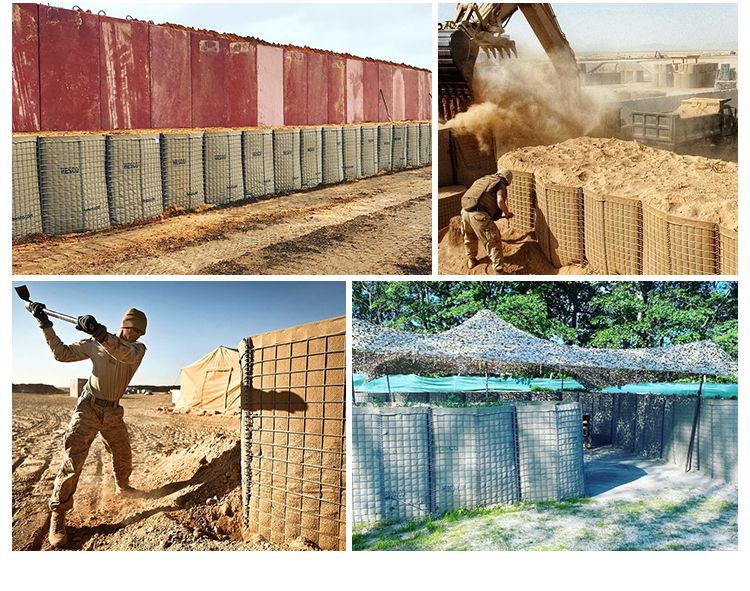

Application

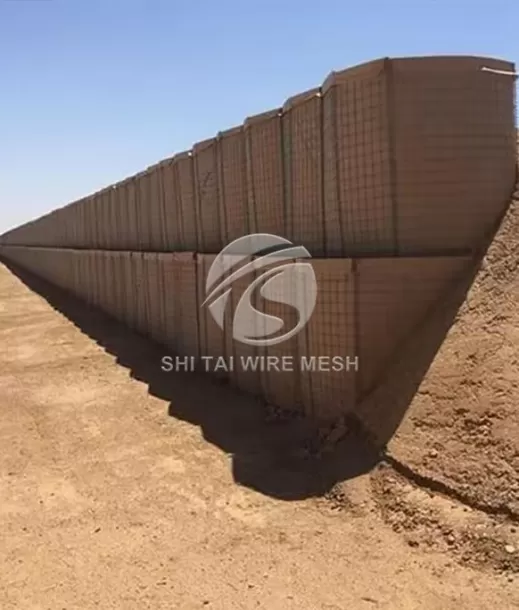

Defensive barrier is widely used in surrounding security, military defensive walls, equipment revetments and defensive shooting positions, that has the ability to resist explosive shock waves and can limit the destructive effect of the explosion to a certain range.

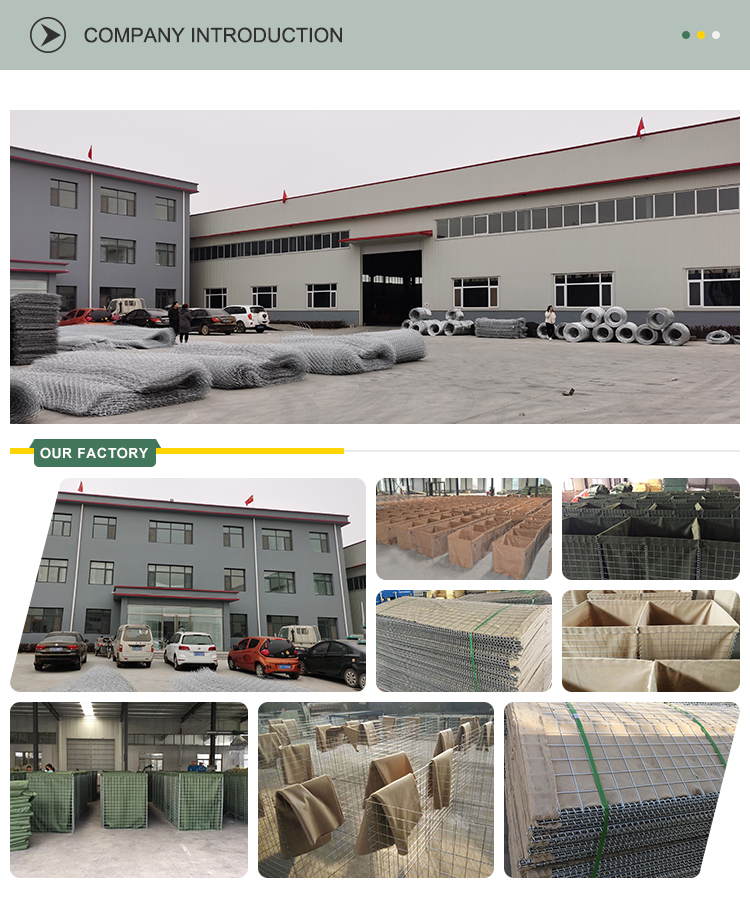

About US
Anping Shitai Wire Mesh Products Co., Ltd. is one of the main manufacturers of wire mesh and other woven wire mesh products in Anping City, Hebei Province, China. Since its establishment in 1991, the company has been engaged in the production and export of gabion mesh, including explosion-proof walls, partitions, welded gabion nets, and mine screens, all of which have reached EU, GB,ISO9001 and ASTM standards.

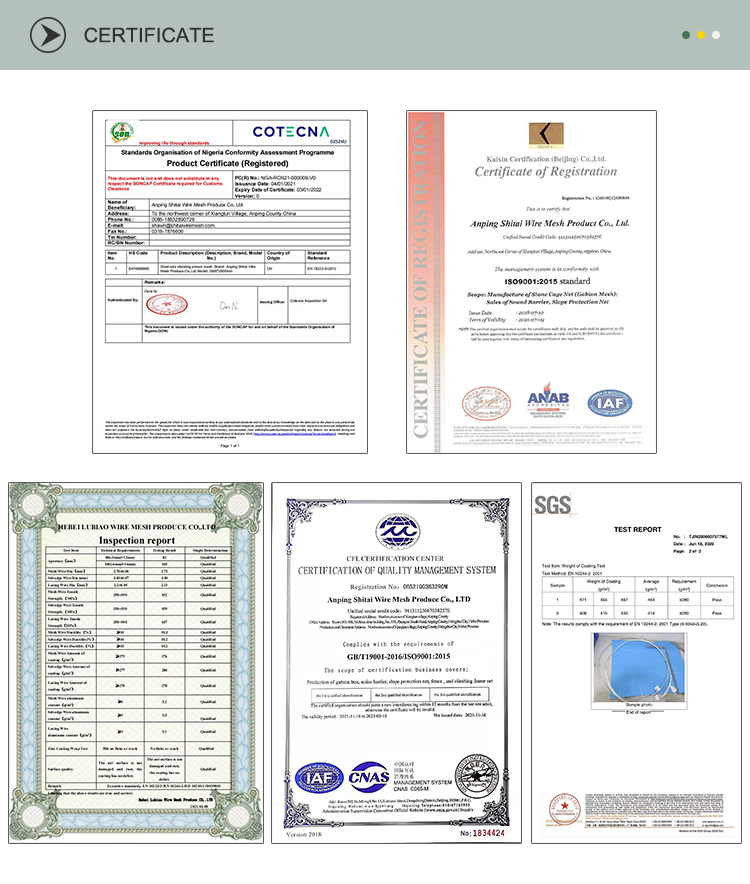

Certifications
