The MIL 7 Military Hesco Barrier is a heavy-duty, multi-cell defensive barrier engineered for perimeter protection, blast mitigation, and flood control in military and humanitarian applications.
Defensive walls
Forward operating bases
Accommodation bunkers
Perimeter security
Blast and ballistic protection
Command & control centres
Training grounds & shoot houses
Military compounds
Ammunition storage
Explosive traverses
Vehicle check points
Hostile vehicle mitigation
The Introduction for Military Hesco Barriers MIL 7
The MIL 7 Military Hesco Barrier is a heavy-duty, multi-cell defensive barrier engineered for perimeter protection, blast mitigation, and flood control in military and humanitarian applications.
Each barrier can be quickly expanded and filled with sand, soil, or gravel using standard earth-moving equipment. Commonly used in forward operating bases (FOBs), border security, flood defenses, and critical infrastructure protection, the MIL 7 provides a modular, reusable, and field-proven solution.
Shitai provides OEM customization, fast logistics, and full technical support to meet the demands of defense contractors, emergency response units, and civil engineering firms worldwide.
1. A pre-fabricated gabion of galvanised welded-mesh steel fitted with a UV-protected Polypropylene geo-textile liner.
2. Filling material is an easily-obtained mix of sand and small stones.
3. Can be connected together to any length, and can be stacked for additional height.
4. Primary military use is as force protection against blast and projectiles.
5. One of the best features of the Mil 7 Hesco Barrier Military is the ease in which it is set up. Get it flown in or pull it off a truck, unfold it, use a front end loader or other heavy equipment to fill it up with dirt, sand or gravel.
The Military Hesco Barriers MIL 7 are mainly used in the army and related departments. Some used in the camping, and some used in the war to protect the people. The geotextile color usually is gray or khaki, so that it’s better to hide.

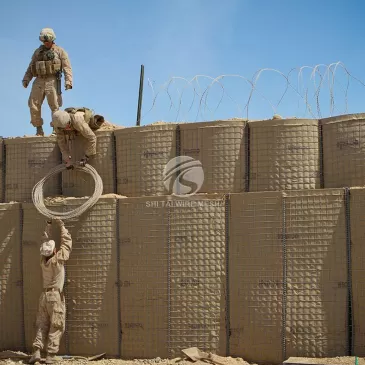

Environment is that of a Military defence wall, used to protect personnel and equipment from the effects of weapons and to increase security around a perimeter. For maximum strength and ease of construction, defence walls are generally constructed from multiple courses, and in a pyramid configuration.
The Specifications for Military Hesco Barriers MIL 7
All MIL Units are lined with a non-woven, UV-resistant geotextile with a five-year field life they can cope with harsh environments. Each unit is available in beige (as default) or green standard colours.
The units are available in a range of heights and widths to provide protection against various threats including vehicles.
The geotextile-lined barriers are available in a recoverable format so you can quickly release the fill simply be removing the pin.
Units can be transported in ISO containers or flat-bed vehicles for a quick clean up.

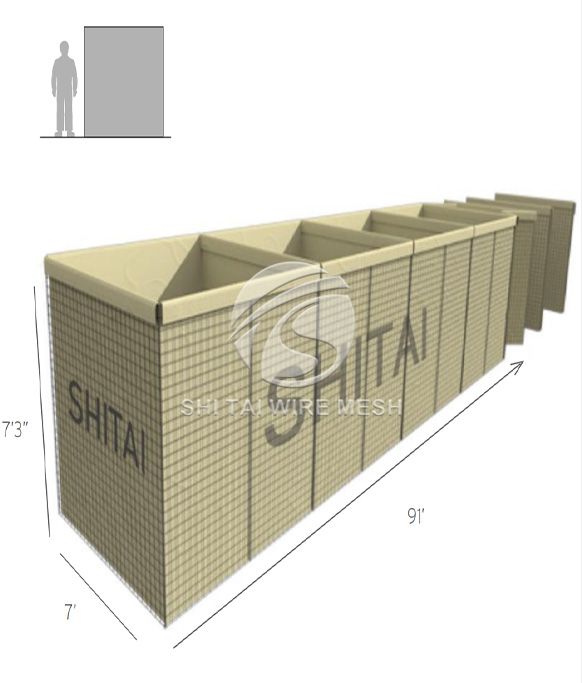

| UNIT | HEIGHT | WIDTH | LENGTH |
ST 7 (Beige) | 7’3” (2.21m) | 7’ (2.13m) | 91” (27.74m) |
ST 7 (Green) | 7’3” (2.21m) | 7’ (2.13m) | 91” (27.74m) |
With Shitai's extended manufacturing experience, besides the regular Hesco barrier specifications, we can provide all the defensive barriers you want. You can design your hesco bastion as per the on-site project from sizes to surface treatment. and personnel.
| Unit Type | Height | Width | Length | Internal Cells |
| MIL 1 | 4'6" | 3'6" | 32' | 9cells(4+5) |
| MIL 2 | 2' | 2' | 4' | 2cells |
| MIL 3 | 3'3" | 3'3" | 32' | 10cells(5x2) |
| MIL 4 | 3'3" | 5' | 32' | 10cells(5x2) |
| MIL 5 | 2' | 2' | 10' | 5cells(5x1) |
| MIL 6 | 5'6" | 2' | 10' | 5cells(5x1) |
| MIL 7 | 7'3" | 7' | 90' | 13cells(4+4+5) |
| MIL 8 | 4'6" | 4' | 32' | 9cells(4+5) |
| MIL 9 | 3'3" | 2'6" | 30' | 12cells(6x2) |
| MIL 10 | 7' | 5' | 95' | 20cells(5x4) |
| MIL1.9 | 9' | 3'6" | 11'3" | 3cells(3x1) |
| EPW 1 | 7' | 3'6" | 108' | 30cells(5x6) |
Shitai professional manufacturing for hesco barrier bastion and on-demand sizes. OEM / ODM customization is acceptable. If you are interested in our products, please send an inquiry!
Can't find what you were looking for?
We can customize the product for you, determine the wire diameter, aperture, length and width, color, welcome to contact

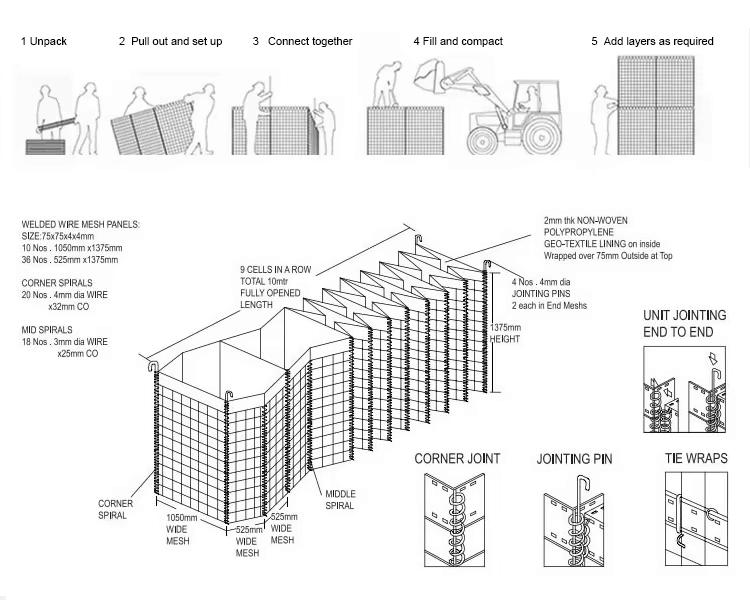

The installation of explosion-proof barrier is very simple. When installing, first stand up the defense barrier and pull it apart in sequence, then use the joining pin to connect the unfolded hesco barrier, and finally use a forklift or other equipment to fill the defense barrier with soil, sand, gravel, crushed stone or other granular material fillers.
Shitai is a leading military hesco bastion barriers manufacturer and supplier in China. We provide Chinese-made Hesco barriers. We use heavy-duty hot-dip galvanized steel welded mesh, lined with high-quality non-woven geotextile fabric, strictly by HESCO standards, offering stock inventory and custom services in various sizes.
Our service is to provide you with superior products, stable supply and factory prices that guarantee your benefits. Request a factory quote today.
Military field:
Installing hesco barrier around important facilities such as military bases, ammunition depots, and command posts can effectively protect the safety of personnel and equipment and prevent enemy explosion attacks.
Industrial field:
In factories and warehouses in flammable and explosive industries such as chemical, petroleum, and natural gas, defense barrier can be used as important safety protection measures to reduce the risk of explosion accidents.
Public safety field:
In schools, hospitals, shopping malls, stations and other public places with dense crowds, installing defense barrier can improve the safety of the places and protect people's lives and property.
Special building field:
For buildings with extremely high safety requirements such as nuclear power plants and important government agencies, defense barrier can be used as important protective facilities to ensure the safe and stable operation of the buildings.
Our Military Hesco Barriers are designed to provide reliable and effective protection in a wide range of military and security applications. We offer comprehensive technical support and services to ensure that our customers can make the most of these products.
Our team of experts is available to answer any questions you may have about the use, installation, and maintenance of our Military Hesco Barriers. We can provide detailed product specifications, installation instructions, and troubleshooting advice to help you get the most out of your purchase.
In addition to technical support, we also offer a range of services to help you get the most out of your Military Hesco Barriers. We can provide custom design and engineering services to meet your specific requirements, as well as training and certification programs to ensure that your personnel are fully trained in the proper use and maintenance of these products. And if you ever need assistance with repairs or replacements, our team is always available to help. Consult online for details.
