358 Anti Climb Fence
ANPING SHITAI WIRE MESH PRODUCE CO.,LTD.

358 Security Fence

Introduction

"358" comes from its measurements 3"*0.5"*8 gauge, which means approximately 76.2mm*12.7mm*4mm (mesh opening* wire diameter). 358 Anti Climb Security Fence is one security fence that is extremely difficult to penetrate through because the small mesh aperture is effectively finger-proof and extremely hard to attack by using conventional hand tools.

358 Fence provides anti-climb properties that ensure it is almost impossible to get fingers within the apertures to scale and climb the fence without climbing aids. which makes it an excellent solution for security applications.

Shitai 358 anti-climb rigid mesh fencing is ideal for everything from high-security installations (prisons, military compounds and power facilities) through to high-end architectural applications thanks to its style & strength, and superior anti-climb (yet visibility-friendly) properties. Depending on your requirements, Shitai 358 anti-climb rigid mesh fencing can be custom-ordered to measure.

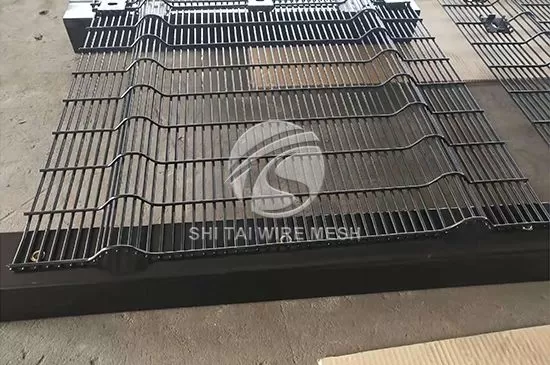

Product Show

358 Security Fence, also known as 358 anti-climb fences, is a high tensile and high security welded wire panels fence in an Anti-climb, Anti-climb and Through rectangular mesh. This fencing system are specifically designed for the protection of sensitive areas (power plants, prisons, research institutions, military bases, borders, oil and gas facilities and embassies…). Depending on the client’s project, the posts (pickets) are designed with L- or Y-shaped arms to integrate conventional barbed wire or razor wire. It can resist intruders effectively.


Benefits of 358 Security Fence

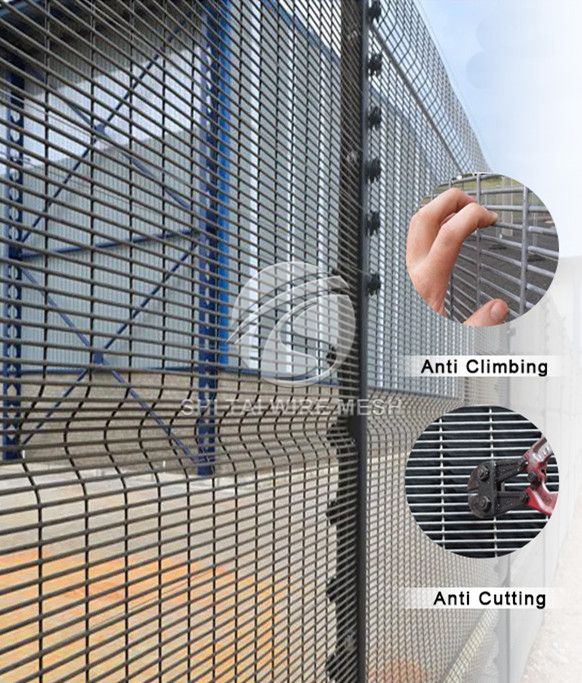

◎ Anti-climbing. Smaller opening. Therefore, human fingers and toes cannot pass through.

◎ Cut-proof. The strong wires and soldered joints make it difficult for wire cutters and breakers to cut.

◎ Versatility. Many different applications such as schools, parks, leisure, and recreational areas.

◎ Durability. 358 mesh fence, made from high-quality steel wire and then galvanized or polymer powder-coated, ensures long life.

◎ Each intersection is welded with high strength.

◎ The mesh fence is configured to provide maximum visibility, especially in emergencies and where electronic detection systems require its use.

◎ Can be stepped on to accommodate sloping ground.

◎ Clamp bar fixings.

◎ Custom designs available. Get a quick quote!

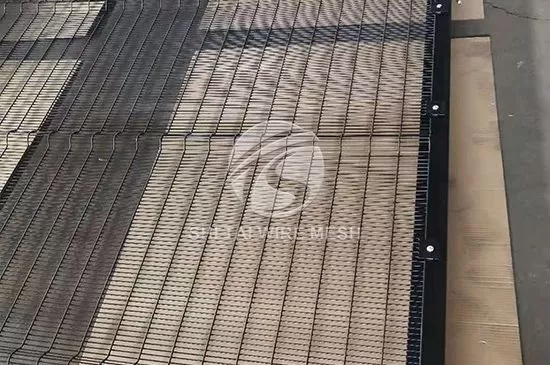

Detail:

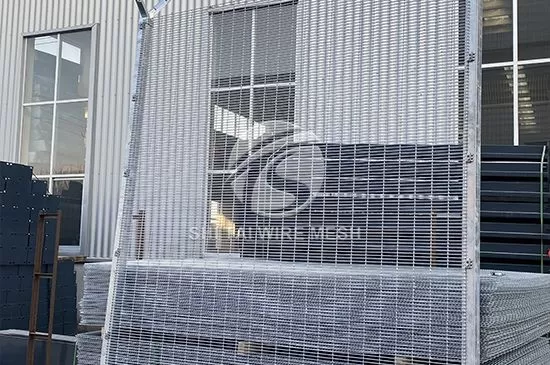

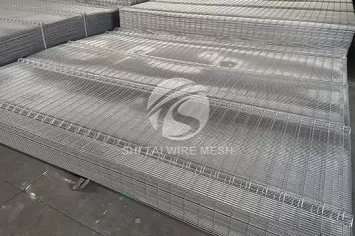

Hot dipped galvanized after welded

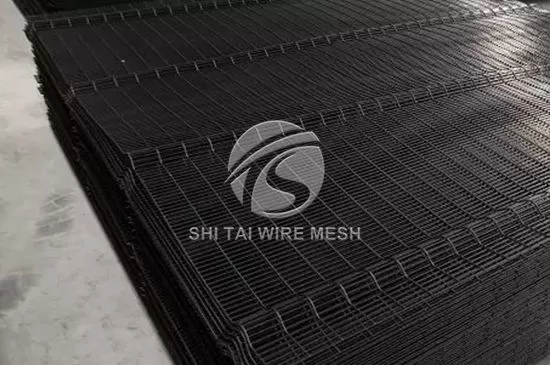

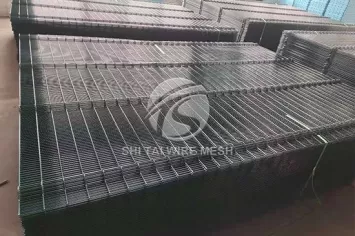

Galvanized wire+powder coated(Color customized)

358 Anti Climb Fence 358 Anti Climb Fence 358 Anti Climb Fence 358 Anti Climb Fence 358 Anti Climb Fence 358 Anti Climb Fence 358 Anti Climb Fence 358 Anti Climb Fence

Product Specifications

All specifications can be customized


Wire Diameter3mm,4mm (8 gauge), 5mm, 6mm
Mesh Aperture76.2mm x 12.7mm ( 3'' x 0.5'')
Height1m,1.5m,1.8m, 2m, 2.4m, 2.7m, 3m, 3.5m, 4m, 5m, etc
Width2m,2.2m,3m, etc
Square post50x50mm, 60x60mm, 80x80mmm, 100x100mm, etc
Surface treatment Hot-dipped galvanized, Powder coated, PVC coated
ColorAny RAL series color(Normal RAL6005 Dark green,RAL9005 Black)

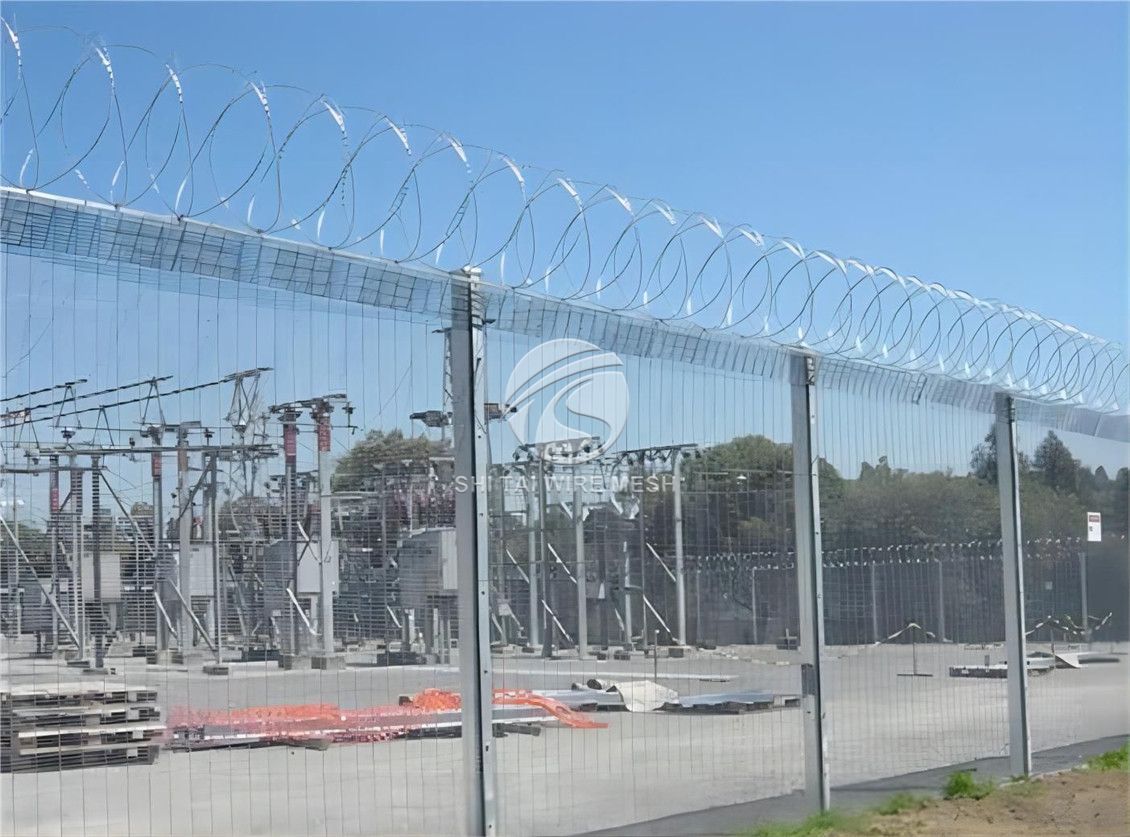

TopBarbed wire and razor wire can be used on top to make it higher security



Square Post  60x60x2(mm), 80x80x2(mm)
Round Post50x2(mm),60x2(mm)
Rectangle Post40x60x2(mm),40x60x1.5(mm),60x80x2(mm)
HeightAccording to fence panel height (Normal 0.65m-4m)
Surface treatmentPowder coated, PVC coated
ColorAny RAL series color(Normal RAL6005 Dark green,RAL9005 Black)
AccessoriesPost cap, clamps, bolts and nuts

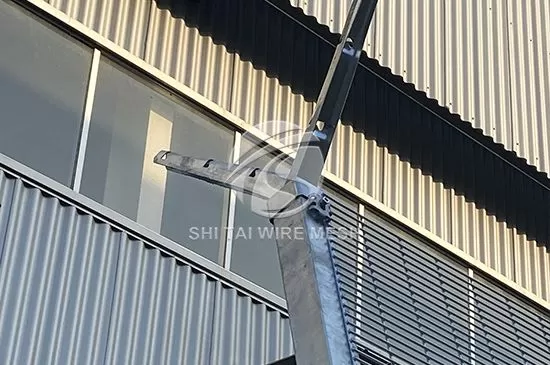

Posts types:round post and square posts, rectangle. Post all posts can support with V arm.


Need a custom solution?

Can't find what you were looking for?

We can customize the product for you, determine the wire diameter, aperture, length and width, color, welcome to contact

Contact US

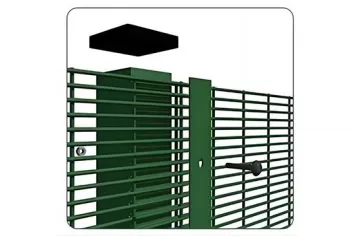

Installation

We provided clips and clamp bar configuration, providing a simple and easy installation method. Supplied with through bolts, washers and nuts and installed using either power or hand tools.


358 Security Fence


1. The 358 security fence is usually composed of a fence panel, the post and accessories.

2. Before installing the fence, it is necessary to install the post of the fence. Posts usually need to be fixed to the ground or wall to provide support and stability for the fence.

3. Posts usually need to be fixed by means of screws, nuts, etc., so as to ensure that the connection between the grids is tight and firm.

4. Use a steel clip or clamp bar to secure panels to the front face of the posts. Panels are butt jointed at each post for securing, posts are fitted with M8 threaded inserts.


With 15 years of expertise, Shitai is the 358 anti-climb fence China market leader. Shitai offers quality and good work in any type of fencing you might need, from choosing the right material to color and coating options. The quality of our manufacturing and the raw materials used to make 358 anti climb fences and any other type of fence you might need ensures long use with no problems.


To get started with planning and deciding on what type of 358 anti climb fence or any other type of fence you might need for your security problems, contact us and get started on building up your protection. It’s easy, economical and chich with Shitai.

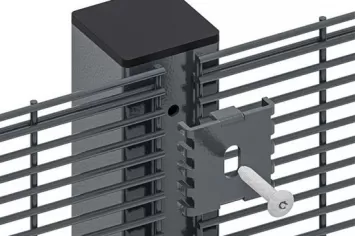

  • Steel Clip
    Steel Clip

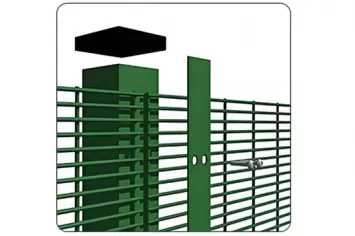

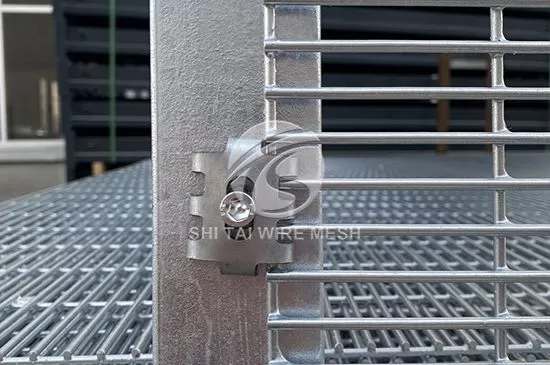

  • Double Fix Clamp Bar
    Double Fix Clamp Bar
  • Single Fix Clamp Bar
    Single Fix Clamp Bar

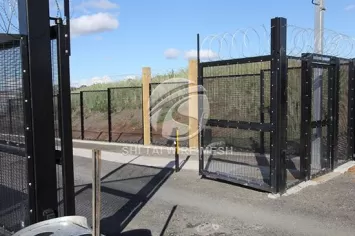

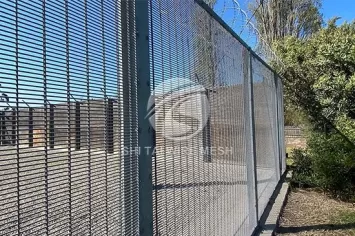

Applications
358 Security Fence meets the highest demarcation requirements to prevent and deter attack or breach internally and externally. It is ideally suited to any application that demands the toughest protective measures, including prisons, utilities, schools,industrial, railroads,airports ,private property and Sports etc.
  • Prisons
    Prisons

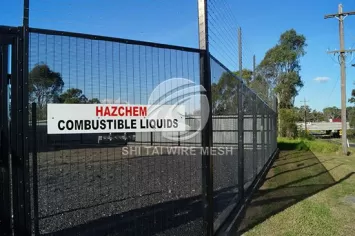

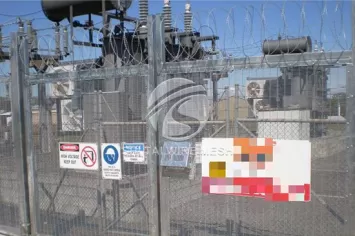

  • Utilities
    Utilities

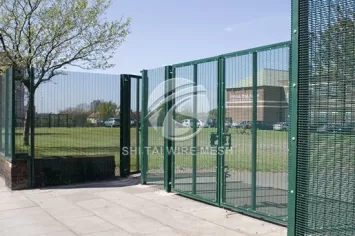

  • School
    School
  • Industrial
    Industrial

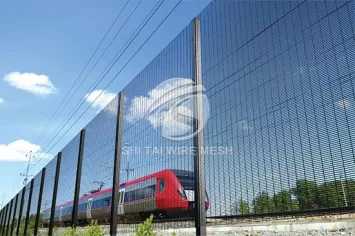

  • Railroads
    Railroads

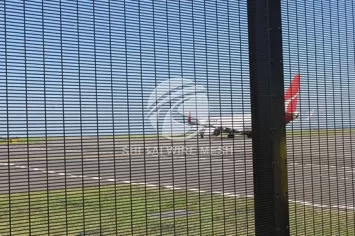

  • Airports
    Airports
  • Private Property
    Private Property
  • Sports
    Sports




Quality Control
To test the size of the fencing. Accordance with the specification, to do inspection for the products. In order to maintain quality assurance, we strictly comply with a operational procedure. To test the strength of the fencing. Here we carried out a personnel test using a calibrated load cell and our own round slings and lever hoists.
358 Security Fence are specifically designed and installed to withstand a variety of attacks. Shitai is committed to providing a system into any of our perimeter security schemes, where required.

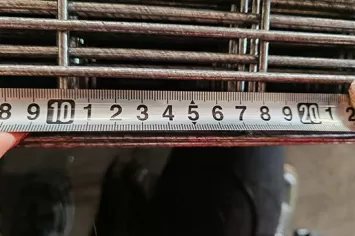

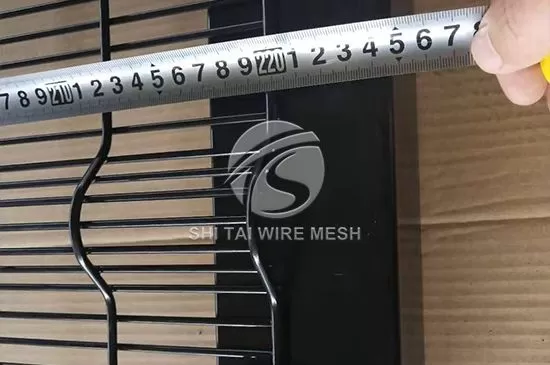

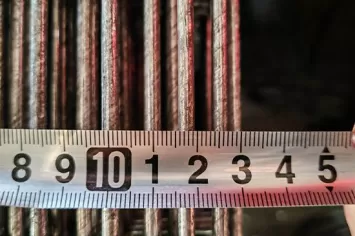

  • Opening Size Test
    Opening Size Test
  • Opening Size Test
    Opening Size Test

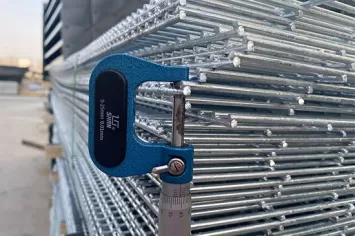

  • Wire Diameter Test
    Wire Diameter Test

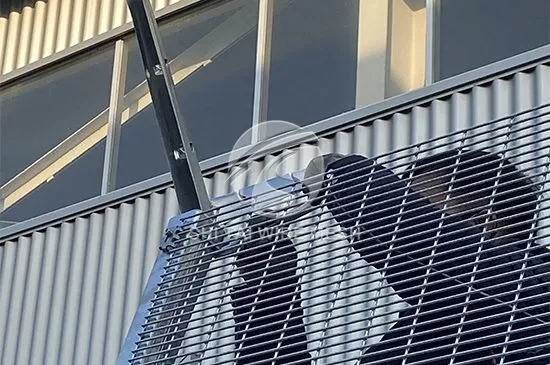

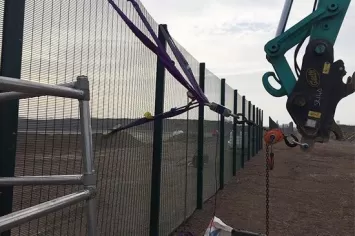

  • To test the strength of the fencing
    To test the strength of the fencing

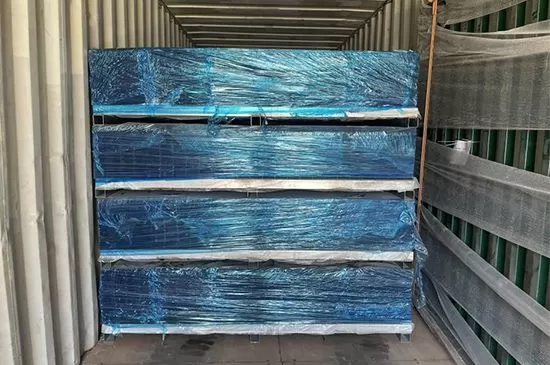

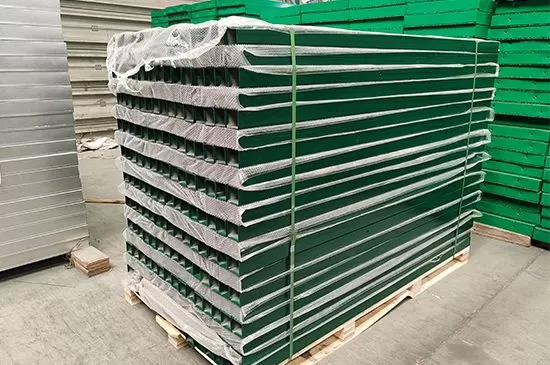

Package and Shipping

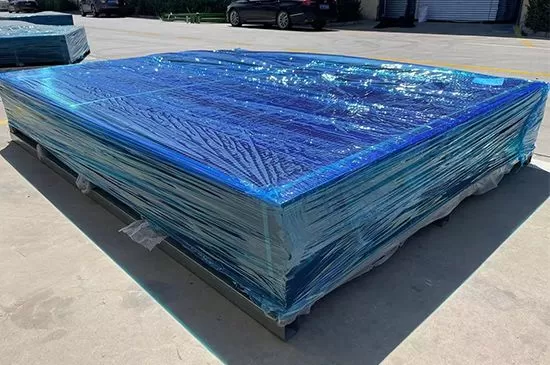

1. Fence panel: plastic film + metal/wooden pallet

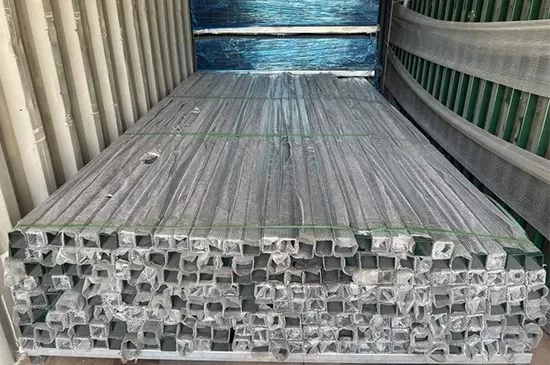

2. Fence post: plastic bag + metal/wooden pallet.

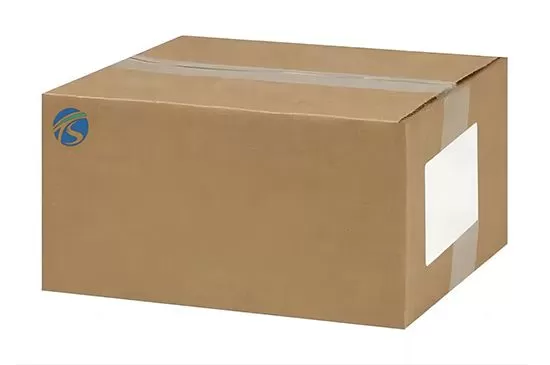

3. Fence accessories: plastic bag + carton box.

Any special requirement for package, please feel free to contact us.

Shipping Ways:

Land transportation, sea transportation, air transportation, express delivery.

We will recommend the most favorable transportation method for you based on customer needs and the size of the goods.

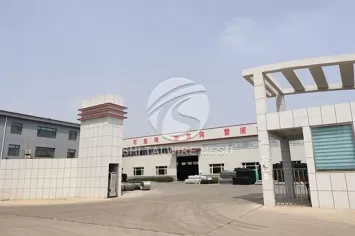

Our Company

Anping Shitai Wire Mesh Produce Co., Ltd. is a professional wire mesh enterprise integrating production and sales. It is located in Anping County hometown of wire mesh. Shitai factory was built in 2008 and has been engaged in the production of gabion, defensive barriers, fences, vibrating screen mesh, noise barriers etc wire mesh products. On April 24, 2013, the company (Anping Shitai Wire Mesh Produce Co., Ltd.) was formally established and started to develop foreign markets. The registered capital is 10.8 million RMB and covers an area of more than 15,000 square meters.


We specialize in the production of gabion baskets, welded gabion, hesco defense barriers, fences, vibrating screen mesh, noise barriers and sound barriers. There are 26 gabion weaving equipment, which can produce 50,000 square meters/day. Our annual output of gabion is over 10 million square meters. At present, our company has more than 300 employees. The company has integrated offices, an operations department, a finance department, a quality inspection department, and a production department. There are four existing processing workshops, of which the gabion workshop is divided into general zinc-coated workshop, zinc-aluminum alloy (Galfan) material workshop, special material workshop, and slope protection net workshop. Our company has achieved ISO9001 quality system certification, and has repeatedly been rated as Hebei Province, the quality and credibility factory and wire mesh industry key enterprises


After more than 15 years of production experience and research innovation, scientific management, and credit management, our factory pays attention to introducing advanced technology and equipment, implements standardized production, and strictly controls raw material procurement, production management, and product testing to ensure quality. Unqualified product is not allowed to leave the factory and we won the trust of customers. All these years, we have been serving the customers with the philosophy of “excellent quality, prompt delivery, reasonable price, and thoughtful service” and have won wide acclaim. We are focusing on continuous development, Anping Shitai Wire Mesh Produce Co., Ltd. is willing to go hand in hand with old and new customers and create brilliant.





Why Is 358 Mesh Perfect for Security and Safety?

Shitai 358 steel mesh provides maximum site security and personnel safety because it is:

Anti-climb fencing is extremely difficult to climb—aperture size makes it nearly impossible to gain hand or foot holds

Highly resistant to normal cutting tools thanks to the minimal penetration gaps afforded by the aperture size

Minimizes visual impact on the surrounds—sufficient aperture size allows for clear spectator viewing pleasure whilst maintaining public safety

Provides a critical clear line of sight for security and camera surveillance


Shitai 358 is the new generation of ultimate security fencing whether you want to keep intruders out, protect the public from health and safety hazards or guard fragile ecosystems.

  • How to install the products?
    When you first purchase a product but don't know how to use the installation, we will provide text or video installation instructions. Don't worry, we not only provide you with the required products, but also provide after-sales service. Anyway, please feel free to contact us if you have any questions!
  • Can we get sample before the formal order?
    Yes, For regular products, we can provide free small size samples, and clients only need to pay for shipping. For non-standard products, sample opening fees need to be paid. The sample fee will be deducted from the official order.
  • How can factory assist me in starting a business?
    We can help you with inquiry, product details,provide samples, transportation,and other aspects. We have spent six months helping Australian client start his new fence business. If you are interested in a certain product but cannot purchase it due to budget or other reasons, do not give up asking for a quote again and do not forget our factory. Within two years, we received multiple inquiries from the same client about the same product, and the following year, he finally had enough money to order a 40 foot container quantity fence. You have a need, and we have always been there.
  • How to get the best product with a limited budget?
    You only need to tell us where the product you need is to be used and what is the total length. We will provide a quotation based on your requirements. If your budget is limited, we have many products for the same purpose, and there is always one product that meets your requirements in terms of price and quality. About transportation Shipping terms: shipping by sea. Payment terms: 30% of the total almost is to be paid by T/T as deposit and the balance is to be paid by T/T before the goods leave the factory. Loading Port: Tianjin Xingang Port, China. Samples we can supply samples for free if small quality. clients need to pay for the shipping charge.
  • What are the effects of what materials are used for surface treatment?
    Powder: we always use the famous international powder (AkzoNobel) sprayed, the powder coated fence will be very smooth, with great corrosion resistance, outdoor use year can reach 15-20 years. Galvanized: All hot-dipped galvanized, the fence will 15-20 years not rust.
  • Can You Supply customization service according to our requirements?
    Yes. Our customization service is including several items: special sizes and accessories, painted logos, customized colors and signboards. Just tell us your requirements, we will try our best to satisfy you.
  • What's the lifespan of your Security Fence?
    It depends. We have several different materials and surface treatment for our steel security fencing, they all have different lifespan. You can tell us your using environments and requirements, we will recommend the best products for your projects.
  • Can your product be used near sea or coastal area?
    Yes, we have heavy galvanized or galfan galvanized wire material to make sure the products no rust in these conditions. We can also add powder coating surface treatment to achieve the best anti-rusting results. We have pass lab salt spray test and many projects experience.
