Palisade Fencing

Introduction

Palisade Fencing is suitable for a variety of outdoor locations where a medium level of security is required. Designed for permanent installation, this Palisade Fencing is extremely robust and resilient and is often a popular choice of security fencing for industrial and commercial buildings, as well as public areas.

The product is rolled from galvanized steel and is protected by a resilient powder coating that when combined offers a long lifetime for the product. The spikes at the top of the fence deter people from attempting to scale the fence.

To ensure the best in safety and security at your facility, select high-security palisade fencing from Shitai.

Inquire Now Next Product

Palisade Fencing Show

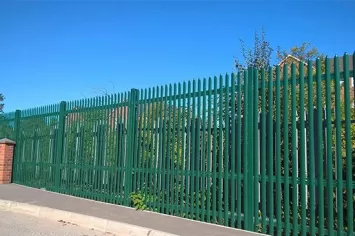

Palisade fencing also called devil fork fencing can be divided into general palisade fencing and security palisade fencing according to the different specifications. General palisade fencing is shorter than security palisade fencing, which has angle type and corrugated type; but security palisade fencing has only corrugated type. With high strength, sharp prongs and narrow pale spacing, the steel palisade fencing can achieve a high level of security to prevent intruders. It's widely used for church fencing, residence fencing, factory fencing, road fencing and so on. For higher security levels, a palisade fence may be used with razor concertina wire coil on the topping.

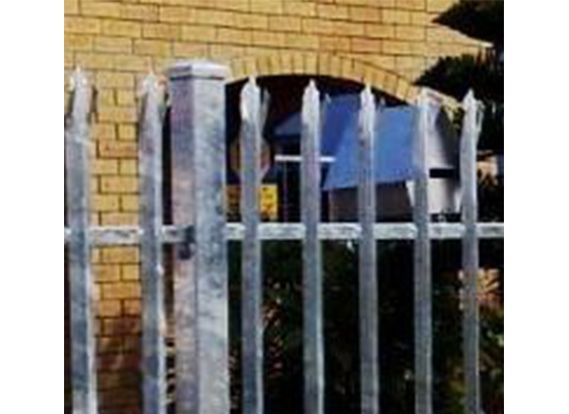

Palisade Fencing

Palisade fencing is a hugely popular, versatile and reliable system. It addresses a wide range of perimeter security needs, from general-purpose demarcation to the highest security, rigorously tested fencing.

Palisade Fencing Features:

● High strength and damage resistance.

● Good security, sharp prongs threaten intruders.

● Various colors for perfect aesthetic effect.

● Easy installation and maintenance.

● Durable and long service life.

Palisade Fencing Application:

School Fencing	Road fencing	Residence fencing	Railway fencing
Park Fencing	Facilities fencing	Yard Fencing	Highway fencing
Church fencing	Plant fencing	Factory fencing	Development zone fencing
Stadium fencing	Construction site fencing	Farm fencing	……

Click to learn more.

Palisade Fencing Specifications

Height	Width	Pale Thickness	Qty:Pale	Cross Rails	Square post	IPE Post
1.8m	2.75m	2/2.5/3mm	17pcs	40×40×4mm 50×50×6mm	6060mm 8080mm 100*100mm	100×55mm
2.1m	2.75m	2/2.5/3mm	17pcs
2.4m	2.75m	2/2.5/3mm	17pcs
3.0m	2.75m	2/2.5/3/3.5mm	17pcs

W section Pale:62mm
1.8m	2.75m	1.5/2/2.5mm	17pcs	40×40×4mm 50×50×6mm	6060mm 8080mm 100*100mm	100×55mm
2.1m	2.75m	1.5/2/2.5mm	17pcs
2.4m	2.75m	1.5/2/2.5mm	17pcs
3.0m	2.75m	1.5/2/2.5mm	17pcs
D Pale section:65mm
1.8m	2.75m	1.5/2/2.5/3mm	17pcs	40×40×4mm 50×50×5mm	60×60mm 80x80mm 100x100mm	100×55mm
2.1m	2.75m	1.5/2/2.5/3mm	17pcs
2.4m	2.75m	1.5/2/2.5/3mm	17pcs
3.0m	2.75m	1.5/2/2.5/3mm	17pcs
Surface treatment: Galvanized or galvanized then powder coating finished

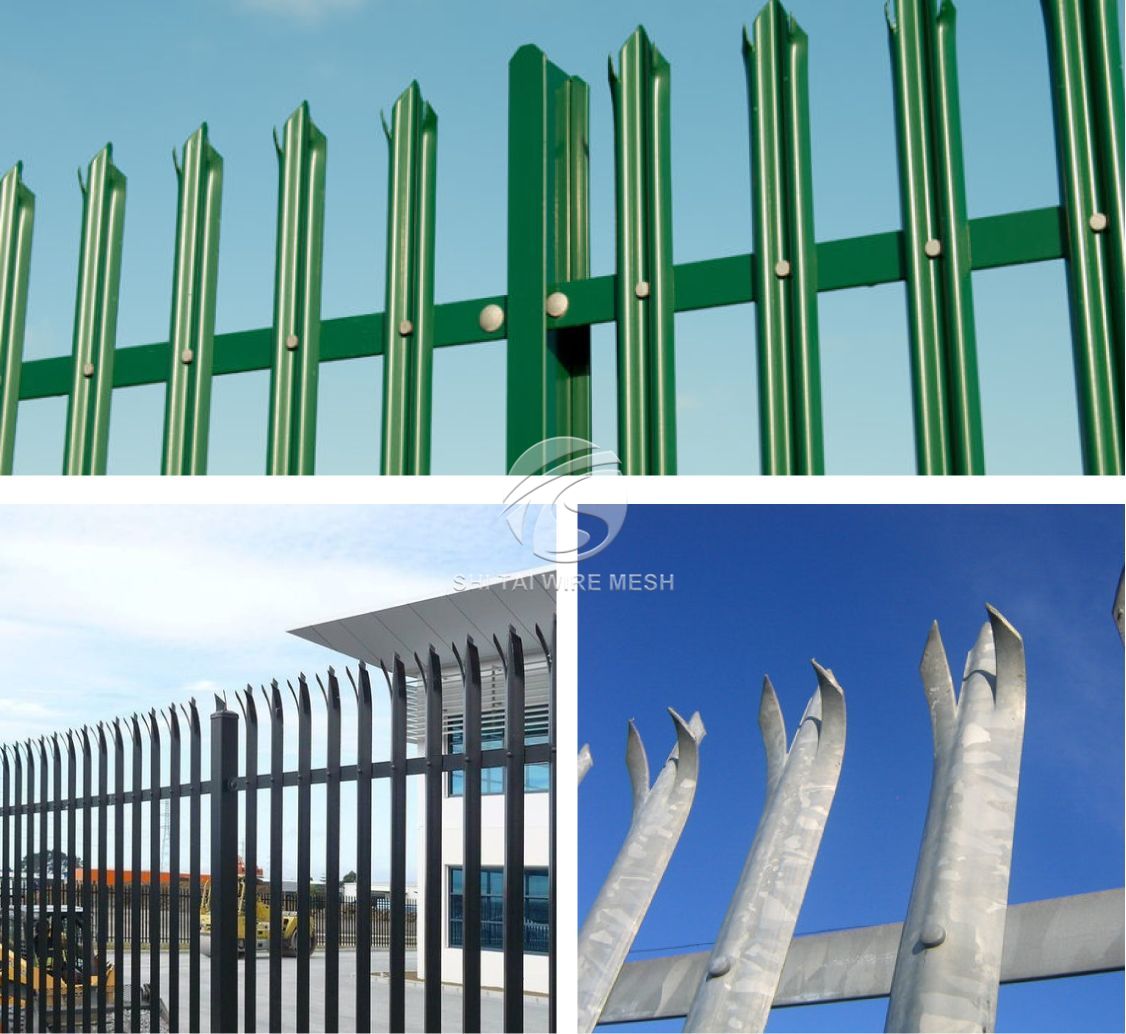

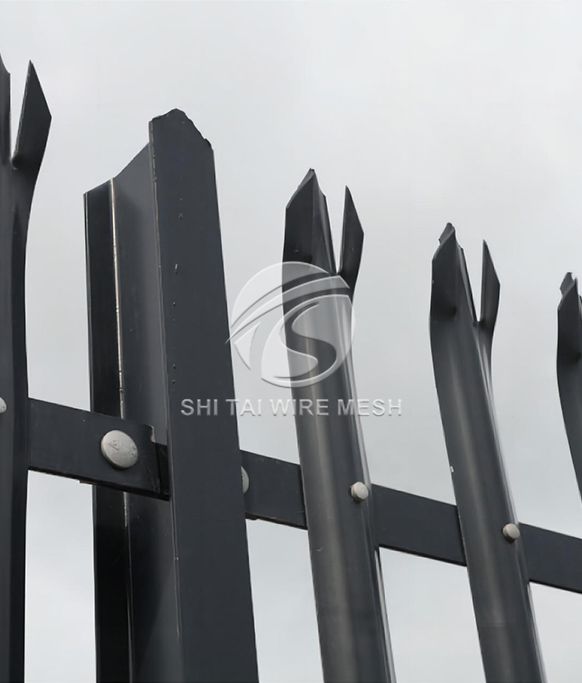

Pale head:Can be do single pointed, triple pointed, square tops, round and notched tops or rounded only.


IPE H Post	SHS Square Post

We supply palisade fencing in a range of specifications and finishes. Alongside this we can also offer various forms of steel palisade access control including palisade vehicle gates and palisade pedestrian gates.

Need a custom solution?

Can't find what you were looking for?

We can customize the product for you, determine the wire diameter, aperture, length and width, color, welcome to contact

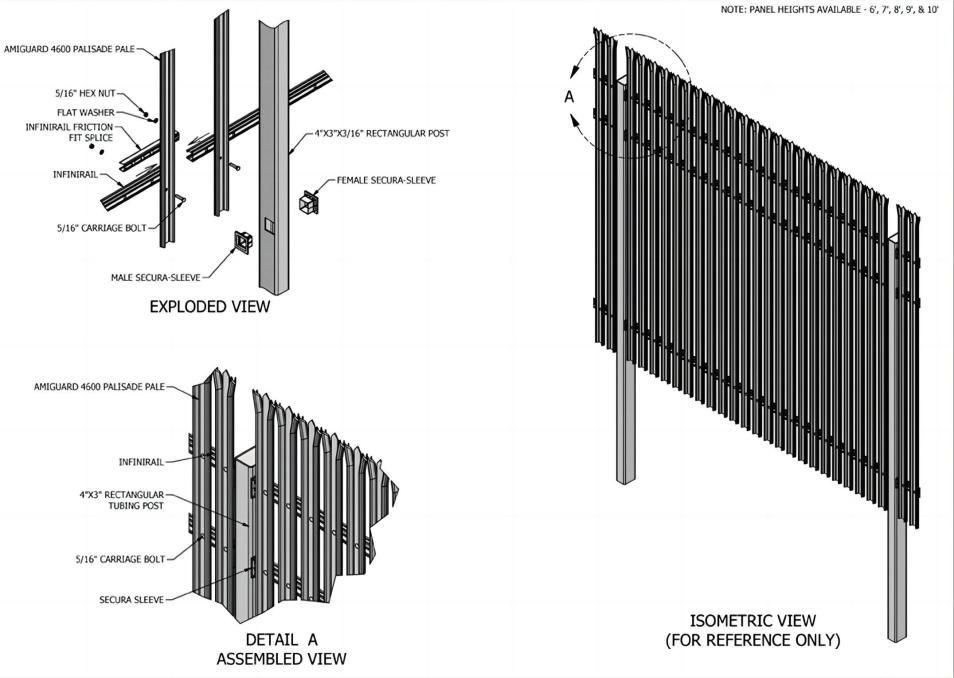

Palisade Fencing Installation

Step 1: For base plates screwed onto concrete.

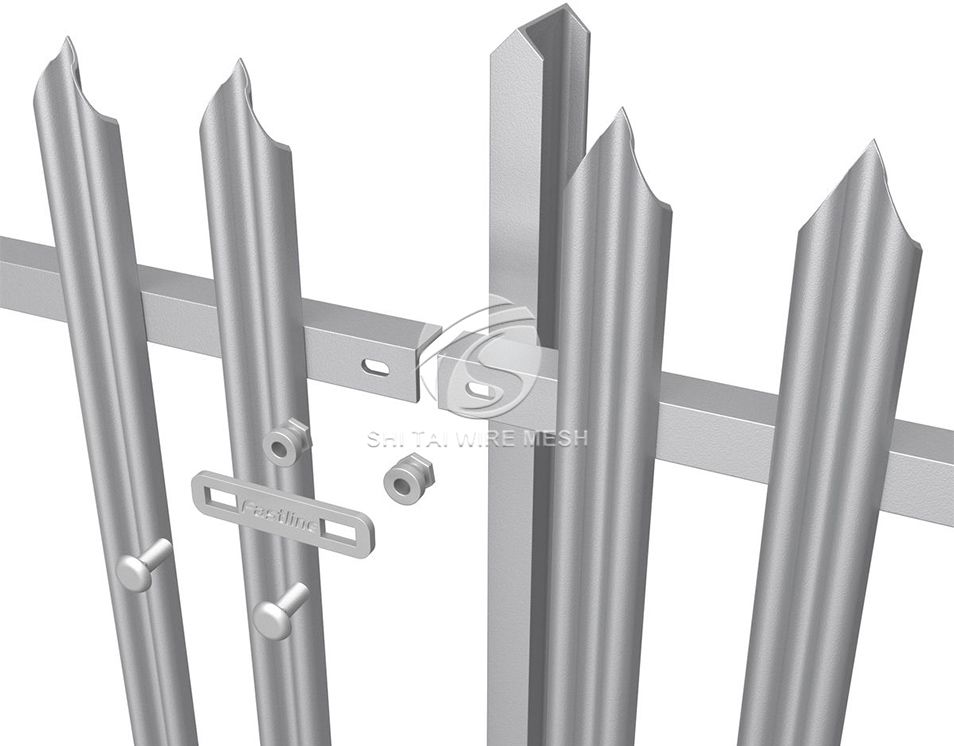

Step 2: Slide the link plates through the post slots. Angled versions are used on internal and external corners and end posts.

Step 3: Secure the rails to the link plates using M12 bolts, and attach the top rail’s anti-grab tags.

Step 4: Attach the pales to the rails with M8 bolts, using pre-drilled holes.

Palisade Fencing

Palisade Fencing Applications

◆ Medium Security

◆ Industrial Perimeter Fencing

◆ Schools

◆ Power stations

◆ Dams and Reservoirs

◆ Government Projects

◆ High Security

◆ ……

Industrial
Utilities Infrastructure
Private Area
Factory

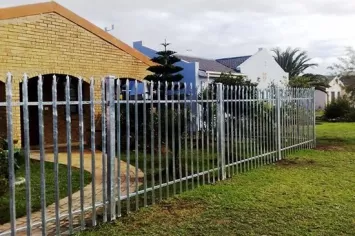

Residential Complexes
Park
Railroads
Garden

Quality Control

After finished the production process and before shipping, our quality inspector will test the finished goods. Our inspector has many years experience, once the unsuitable goods will be re-produced immediately.

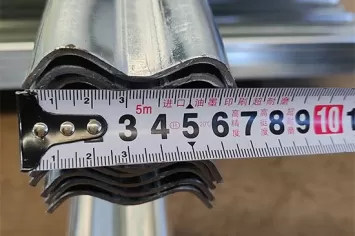

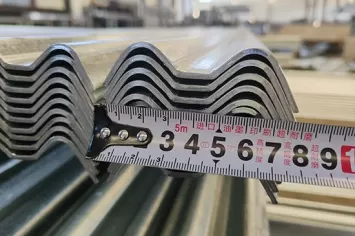

W Pale Width Test
W Pale Width Test

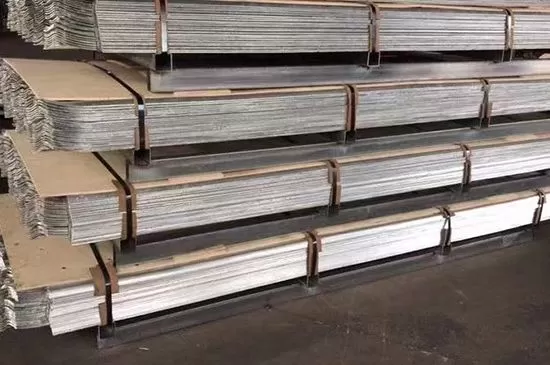

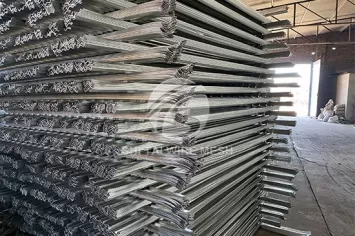

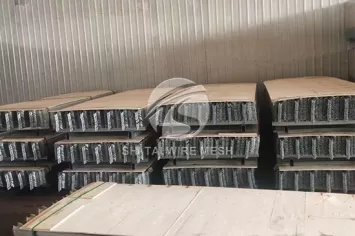

Package and Shipping

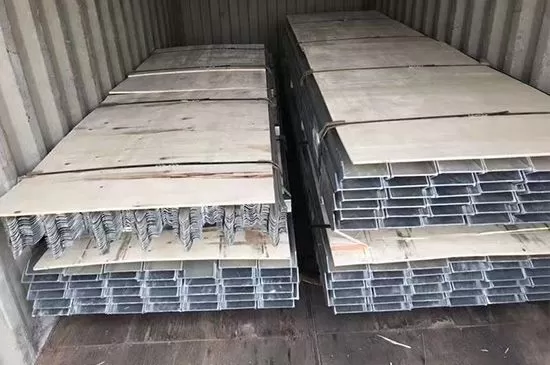

The bulk packing will take a little longer because it needs to be assembled, but because it is compact, shipping is far more affordable.

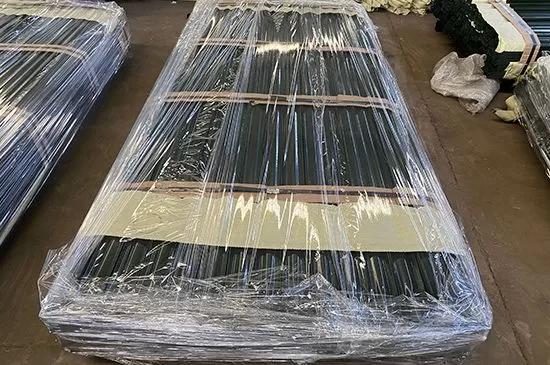

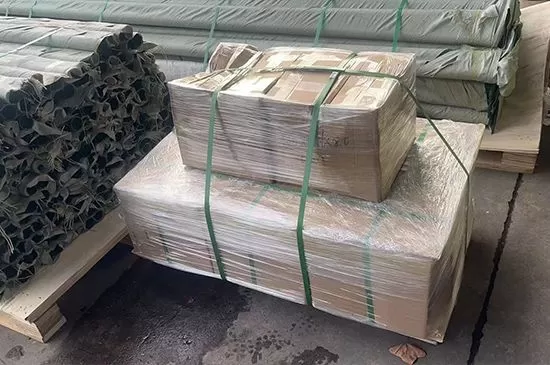

Packaged on plastic film+wooden/metal pallet.

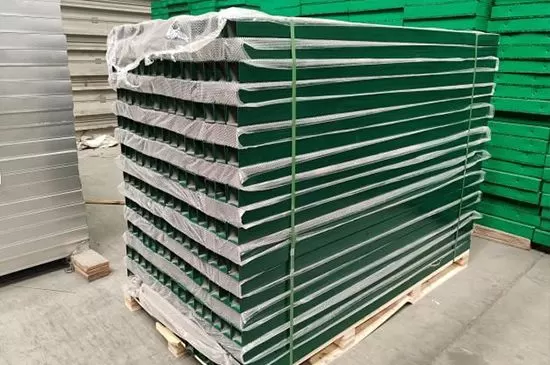

Fence post: plastic film + metal/wooden pallet

Fence accessories: plastic bag + carton box (clips & screws)

According to customer requirements, provide different packaging.

1. Standard packing---Bulk. Save space, packaging costs, and shipping costs without using pallets.

2. Customized packing. The cost is high, but the loading and unloading is convenient, saving labor costs.

Any special requirement for package, please feel free to contact us.

Shipping Ways:

Land transportation, sea transportation, air transportation, express delivery.

We will recommend the most favorable transportation method for you based on customer needs and the size of the goods.

Our Company

As one of the leading palisade fencing manufacturers in China, we offer a complete set of high-quality palisade fencing products to cater to your different needs. Our products include palisade fencing panels, palisade gates, palisade pale, palisade posts, palisade rails and palisade fittings including fishplates, post clamps, bolts and nuts.

Why choose us?

Providing widest choices:

Our company is a specification in manufacturing palisade fencing products and capable of offering the widest choices of designs and specifications in the markets.

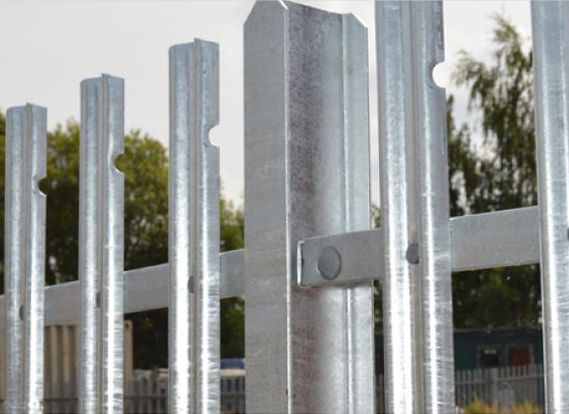

· A choice of pale profiles - W pale, D pale and angle steel pales.

· A choice of head types - with incomparable nine types of head types.

· A choice of assemble ways - by fishplates or post clamps as your request.

· A choice of material - low carbon steel. Stainless steel, hot rolled steel, cold rolled steel, or customized materials.

· A choice of surface treatment - hot dipped galvanized with the optional PVC coating. Any color is available.

· A choice of specifications - palisade fencing with a height ranging from 1.2m to 3.6m. Customized specifications are acceptable.

Excellent properties:

· Providing a high level of security.

· With high damage and vandal resistance.

· Anti-thief and unscalable.

· Durable and robust.

· Attractive yet forbidding appearance.

· Without sight blocks.

· Follow the terrains.

· Easy to transport and install.

· Anti-weather with a long lifespan.

· High rust and corrosion resistance.

· Low maintenance and easy to repair - just replace the damaged pales with a new one.

Competitive price:

We are the direct manufacturer and seller of palisade fencing. All of our products are manufactured in house. Furthermore, no agent to get a profit by rising prices!

If you have some questions or want more details about the products, please contact us. We are pleased to answer your questions.

FAQ

How to install the products?

When you first purchase a product but don't know how to use the installation, we will provide text or video installation instructions. Don't worry, we not only provide you with the required products, but also provide after-sales service. Anyway, please feel free to contact us if you have any questions!
Can we get sample before the formal order?

Yes, For regular products, we can provide free small size samples, and clients only need to pay for shipping. For non-standard products, sample opening fees need to be paid. The sample fee will be deducted from the official order.
How can factory assist me in starting a business?

We can help you with inquiry, product details,provide samples, transportation,and other aspects. We have spent six months helping Australian client start his new fence business. If you are interested in a certain product but cannot purchase it due to budget or other reasons, do not give up asking for a quote again and do not forget our factory. Within two years, we received multiple inquiries from the same client about the same product, and the following year, he finally had enough money to order a 40 foot container quantity fence. You have a need, and we have always been there.
How to get the best product with a limited budget?

You only need to tell us where the product you need is to be used and what is the total length. We will provide a quotation based on your requirements. If your budget is limited, we have many products for the same purpose, and there is always one product that meets your requirements in terms of price and quality. About transportation Shipping terms: shipping by sea. Payment terms: 30% of the total almost is to be paid by T/T as deposit and the balance is to be paid by T/T before the goods leave the factory. Loading Port: Tianjin Xingang Port, China. Samples we can supply samples for free if small quality. clients need to pay for the shipping charge.
What are the effects of what materials are used for surface treatment?

Powder: we always use the famous international powder (AkzoNobel) sprayed, the powder coated fence will be very smooth, with great corrosion resistance, outdoor use year can reach 15-20 years. Galvanized: All hot-dipped galvanized, the fence will 15-20 years not rust.
Can You Supply customization service according to our requirements?

Yes. Our customization service is including several items: special sizes and accessories, painted logos, customized colors and signboards. Just tell us your requirements, we will try our best to satisfy you.
What's the lifespan of your Security Fence?

It depends. We have several different materials and surface treatment for our steel security fencing, they all have different lifespan. You can tell us your using environments and requirements, we will recommend the best products for your projects.
Can your product be used near sea or coastal area?

Yes, we have heavy galvanized or galfan galvanized wire material to make sure the products no rust in these conditions. We can also add powder coating surface treatment to achieve the best anti-rusting results. We have pass lab salt spray test and many projects experience.
