Hexagonal Gabion Box
ANPING SHITAI WIRE MESH PRODUCE CO.,LTD.

Hexagonal Gabion Box

Introduction

Hexagonal Gabion Box, also called Hexagonal Gabion Mesh,Hexagonal Gabion Basket.


Hexagonal Woven Mesh Gabion Box is a mesh structure woven from low-carbon steel wire or PVC coated steel wire, which is mechanically woven to form a box shaped. It is widely used in modern engineering for slope support, foundation pit support, mountain rock surface hanging net spraying and other projects.It plays an important role in water flow erosion prevention, protection of riverbed and riverbanks, and other fields.


Hexagonal Woven Mesh Gabion Box has been widely recognized and applied in engineering practice due to its unique advantages and functions.

Hexagonal Gabion Mesh / Box / Basket

Hexagonal Gabion Mesh Description


Hexagonal gabion mesh is a common type of gabion with hexagonal holes, which is made of high tensile strength, high corrosion resistance galvanized wire, PVC coated wire, or galfan wire (zinc-aluminum alloy wire) woven by a fully automatic weaving machine.


Why Do You Need Hexagonal Gabion Mesh?


● Hexagonal Gabion Mesh is high strength but still flexible enough over poor underlying soil profiles

● Hexagonal Gabion Mesh is made to withstand very high compressive loads from above in large retaining walls and fast-flowing water velocities in river situations

● Hexagonal Gabion Mesh is strong and can be used for high-strength requirements like rock netting fall protection

● Mesh is made with a double twist for strength and cannot easily unravel if the wire is cut

● The wire is Class A Galvanised or PVC coated to prevent mesh corrosion on site

● Flexible high-strength mesh for use in Gabions


Hexagonal Gabion Mesh Types


Hexagonal Gabion Box


☼ According to the different materials used, hexagonal gabion mesh includes 3 types: galvanized gabion mesh, PVC-coated gabion mesh, and coating gabion mesh.


● Type 1: Galvanized gabion mesh, a widely used type of gabion mesh, has a zinc layer on the surface of the wire, which can effectively prevent corrosion by air and water. According to the different amounts of zinc, it can be divided into ordinary galvanized and high galvanized, the amount of zinc on ordinary galvanized gabion mesh is: 40-60g/㎡, and the amount of zinc on high galvanized gabion mesh is: 200-500g/㎡. The higher the zinc content, the longer the service life.

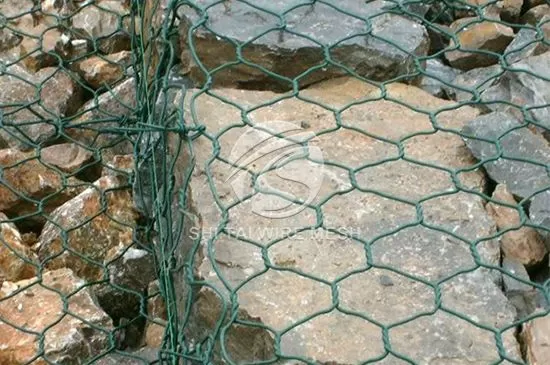

● Type 2: PVC-coated gabion mesh, the inner wire is generally galvanized wire or galfan wire, the outer edge is wrapped with a layer of PVC coating, the coating thickness is generally 1mm, PVC-coated gabion mesh compared to galvanized gabion mesh, has better corrosion resistance, the service life of up to 20 years or more.


● Type 3: Galfan coating gabion mesh, made from zinc aluminum alloy coating wire, including two types: 95% zinc, 5% aluminum or 90% zinc 10% aluminum coating, due to the zinc-aluminium coating, compared with galvanized gabion mesh, the corrosion resistance is stronger, and the service life is longer, generally can reach more than 50 years.


Hexagonal Gabion Box


☼ According to the different shapes and structures, Hexagonal gabion mesh includes a gabion basket and a gabion mattress.

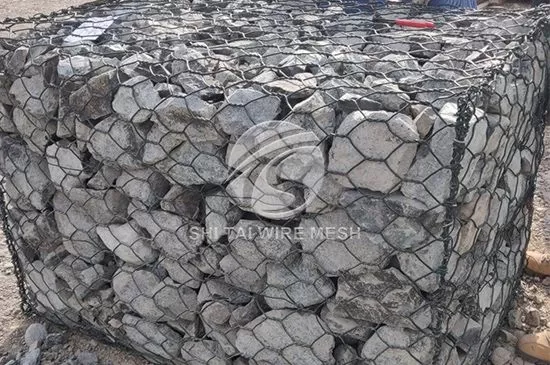

● Type 1: Hexagonal gabion basket, which can be filled with appropriate-sized rocks to form a retaining wall structure. There is a diaphragm in the middle, which can enhance its strength. Gabion box is widely used in river control, dam protection, landscape and so on.

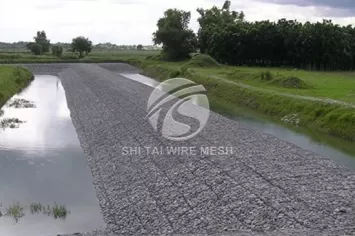

● Type 2: Gabion mattress, also known as reno mattress, is a mesh box structure with a height of generally 0.3m, filled with stones, which is generally applied in slope protection or laid on the riverbed to prevent the water from scouring the riverbed.


Compare Prices.


Hexagonal Gabion Mesh Details:

Hexagonal Gabion Box Hexagonal Gabion Box Hexagonal Gabion Box Hexagonal Gabion Box Hexagonal Gabion Box Hexagonal Gabion Box

Hexagonal Gabion Mesh Specifications

SizeWire DiameterApertureSurface Treatment
1*1*0.5m
1*1*1m
2*1*0.3m
2*1*0.5m
2*1*1m
3*1*1m
2.0mm
2.2mm
2.7mm
3.0mm
70*90mm
80*100mm
90*110mm
PVC coated
hot dip galvanized wire
galfan/zinc-5% aluminum wire
Note: materials, wire diameter, Mesh opening, and size of the hexagonal gabion mesh can be customized

If you're looking for a specific product that isn't on the list. Please contact us, there is expert advice special for you according to your application and budget!

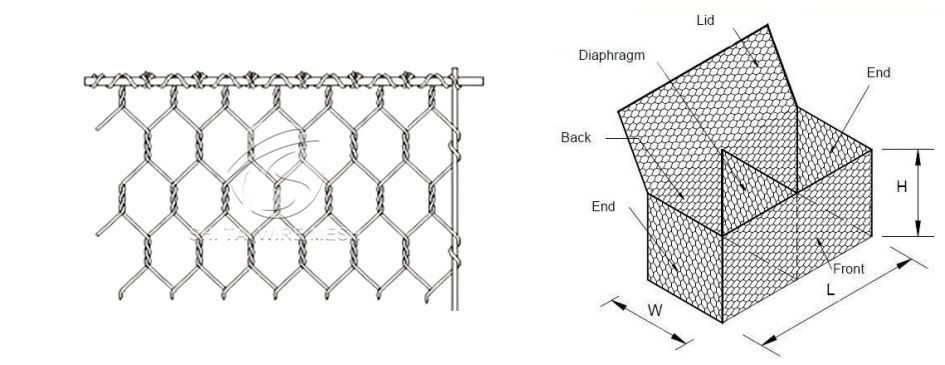

Hexagonal Gabion Box

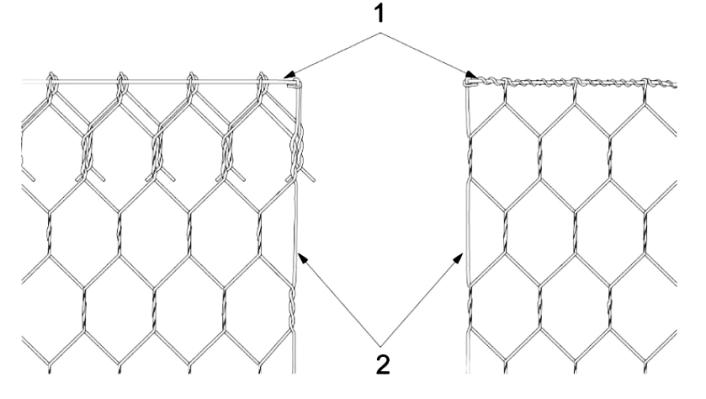

1: selvedge wire; 2: edge wire

Hexagonal Gabion Box

The above are our standard sizes and specifications, in addition, we also support site design and customized size, just simply provide the length of your site on all four sides of the length of the straight line length and height, contact us to quickly customize and view the effect drawings!

Need a custom solution?

Can't find what you were looking for?

We can customize the product for you, determine the wire diameter, aperture, length and width, color, welcome to contact

Contact US

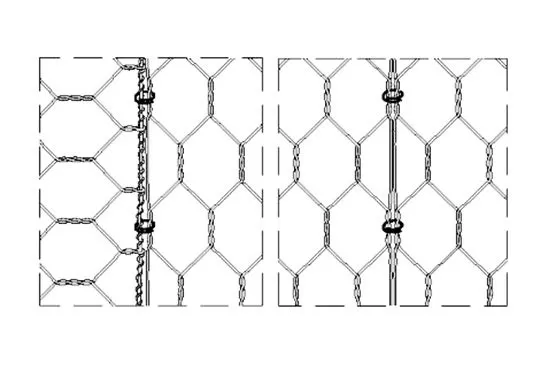

Connection Mode

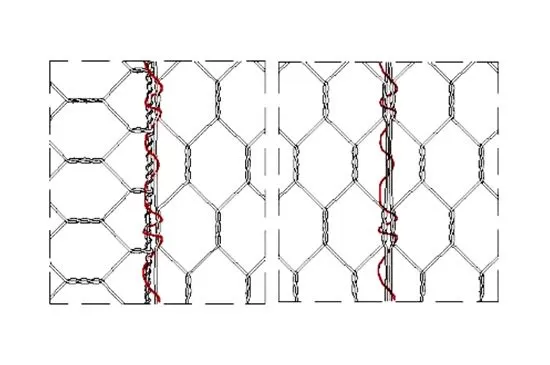

Type1: Connection using lacing wire
Type1: Connection using lacing wire
Type2: Connection using C-rings
Type2: Connection using C-rings

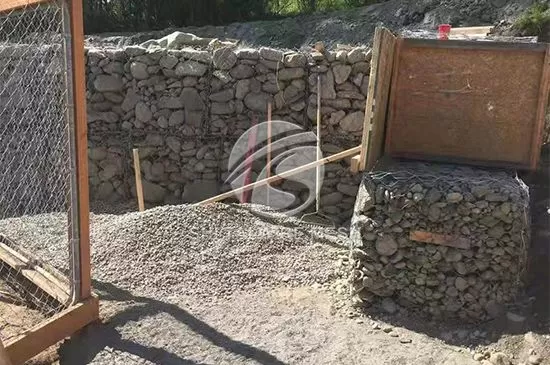

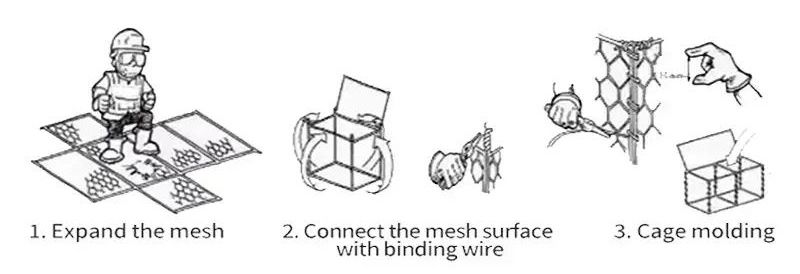

Installation of Hexagonal Gabion Mesh

Hexagonal Gabion Box


Hexagonal Woven Mesh Gabion Box typically comes packaged in a folded form, with all the gabion panels already connected to form a single unit. This means that you've essentially completed the second step already!



The next step is to unfold the gabion basket and make it flat. Then, lift up the gabion mesh panels at the bottom and use tying wire to tie together adjacent panels.



Once the structure is secured, it’s time to fill the gabion mesh with stones. After you've added enough stones to fill the mesh, use binding wire to firmly fix the top of each side of the gabion mesh. And just like that, the hexagonal woven mesh gabion box is installed with ease.

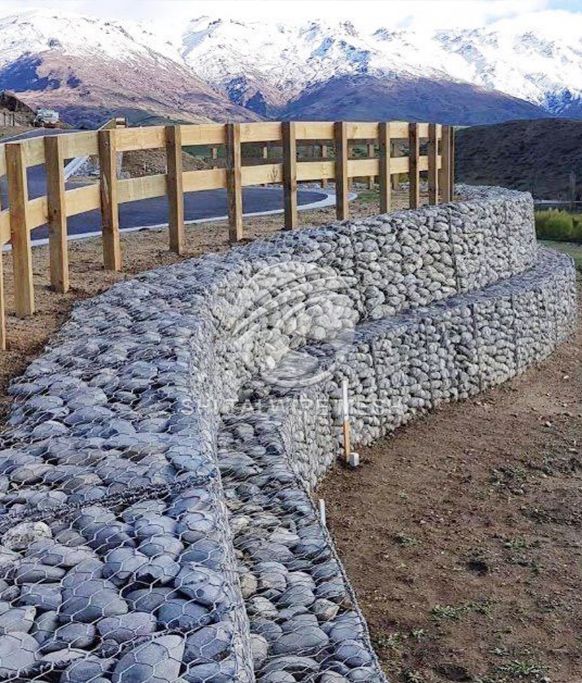

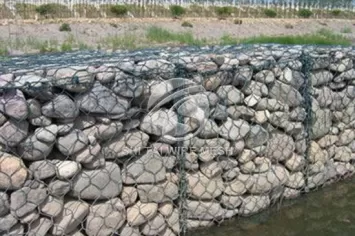

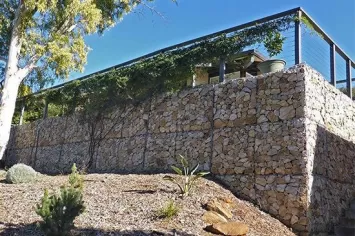

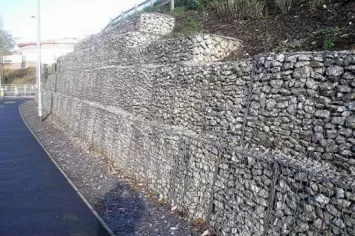

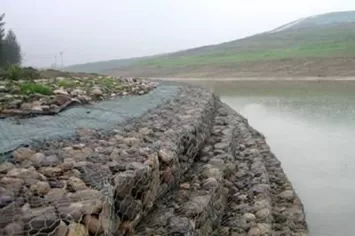

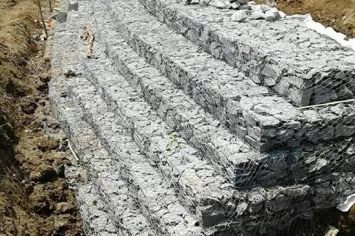

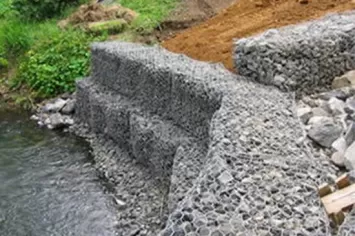

Hexagonal Gabion Box Applications

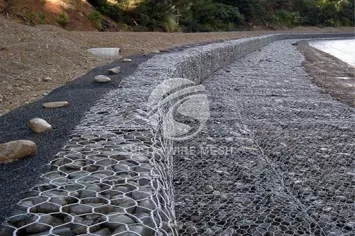

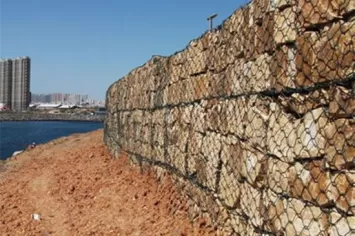

Hexagonal Gabion Box is used in many situations including the stabilization of earth movement and erosion, river control, reservoirs, canal refurbishment, landscaping and retaining walls.​


● Control and guide of water or flood
● Flood bank or guiding bank
● Prevention of rock-breaking
● Water and soil protection
● Reinforcement of bridge base and extrusion of hydropower stations
● Preventive stabilization of soil
● Protection engineering of seaside area
● Stabilization and reinforcement of slopes with deviation
● Construction of support walls with flat or tiered surface
● Strengthening of water barriers, canals and docks
● Coating of river banks, canal and stream banks
● Retaining mounds

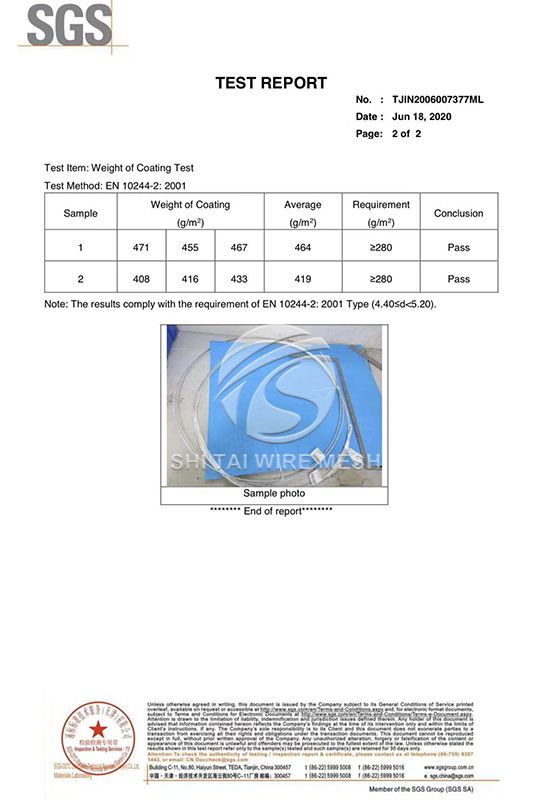

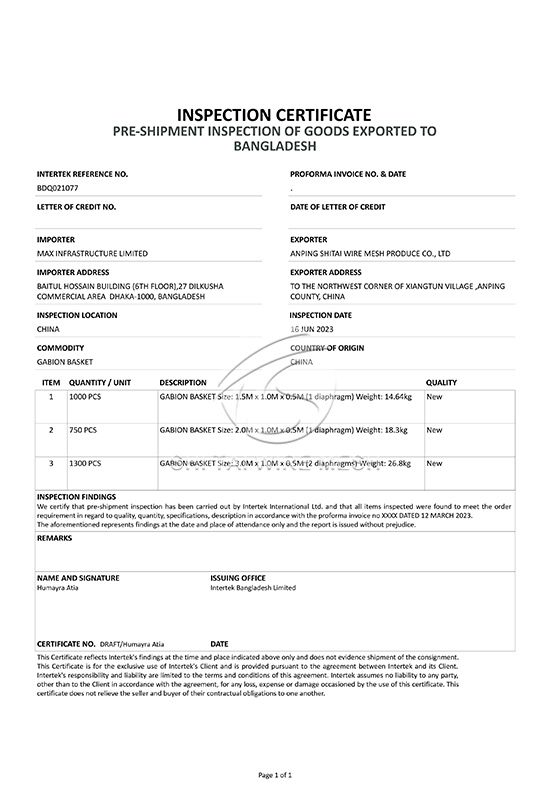

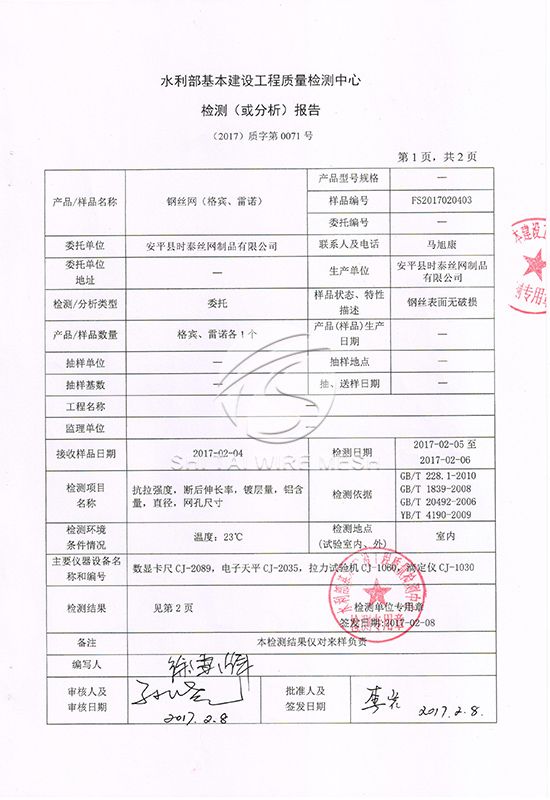

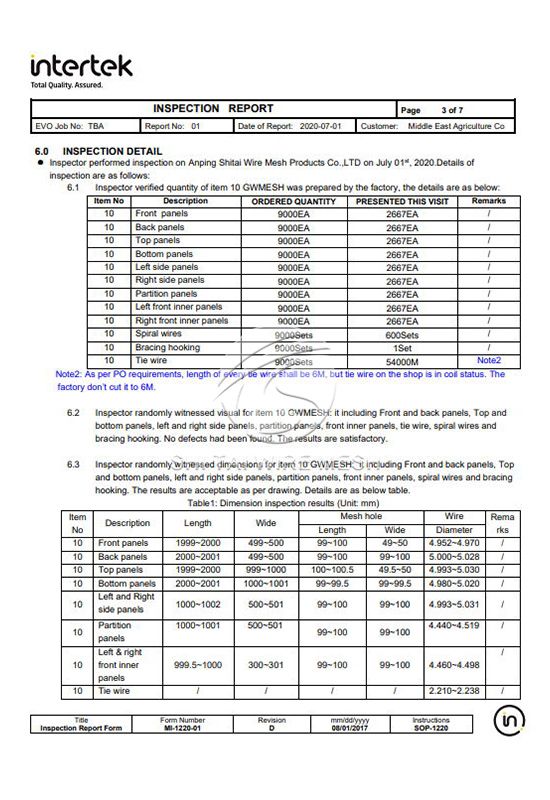

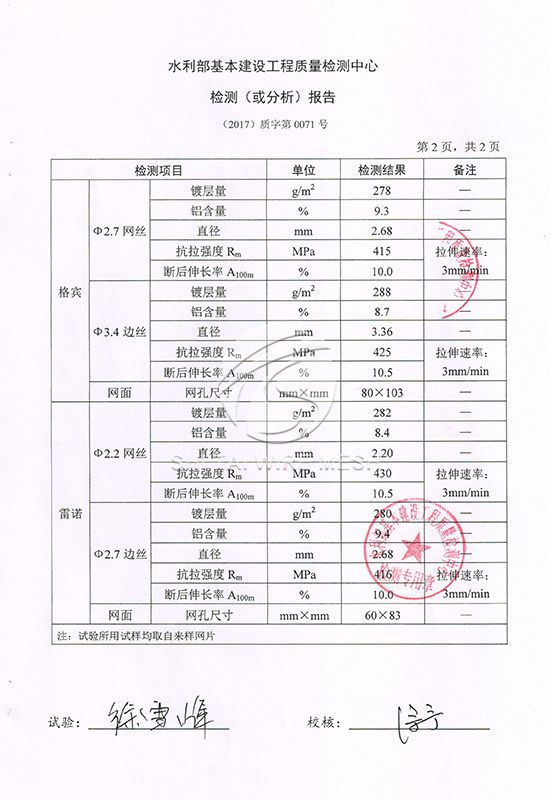

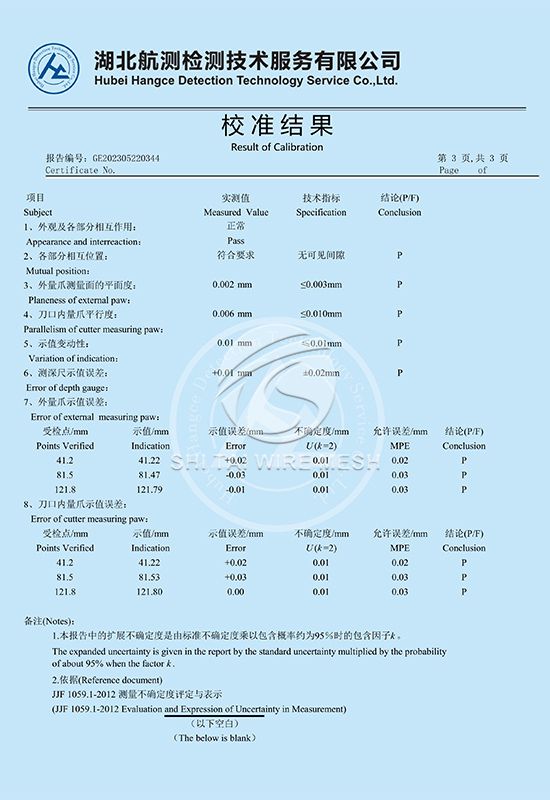

Quality Control

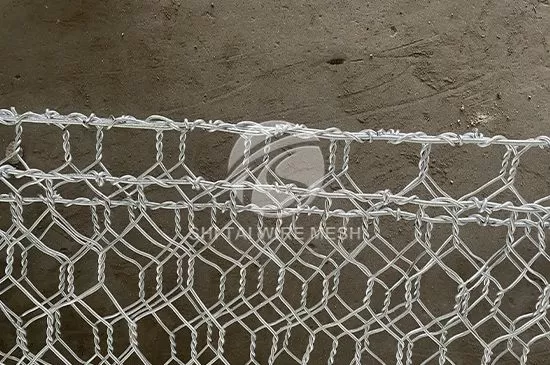

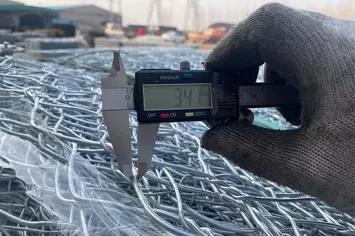

  • Selvedge Wire Test
    Selvedge Wire Test

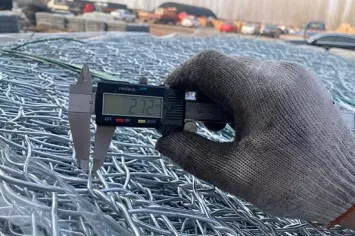

  • Mesh Wire Test
    Mesh Wire Test




Hexagonal Gabion Box Advantages
  • 1. Flexible structures can adapt to changes in slopes without being damaged, it have better safety and stability than rigid structures.
  • 2. Strong anti erosion ability, able to withstand water flow speeds of up to 6m/s.
  • 3. The hexagonal woven mesh gabion box's structure is essentially permeable. It has a strong tolerance for the natural and filtering effects of groundwater. Suspended substances and sludge in the water can settle in the rock filling cracks,which is beneficial for the growth of natural plants and gradually restoring the original ecological environment.

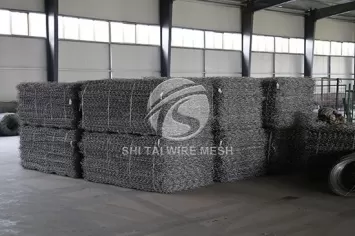

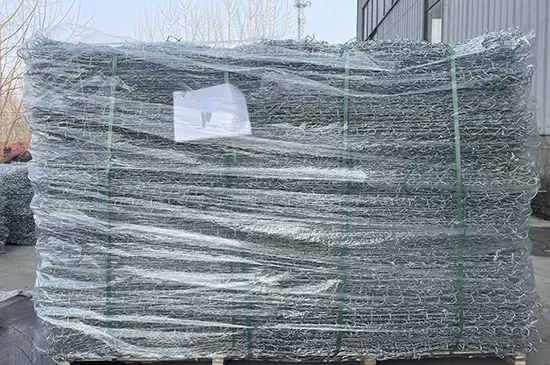

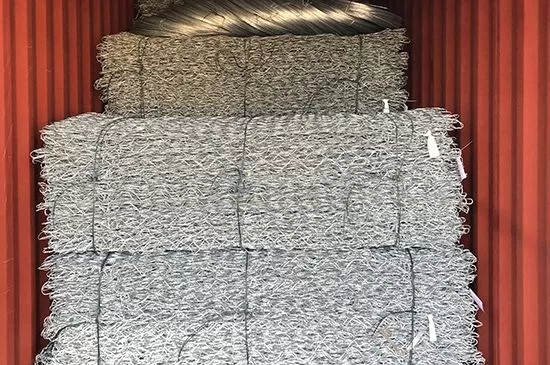

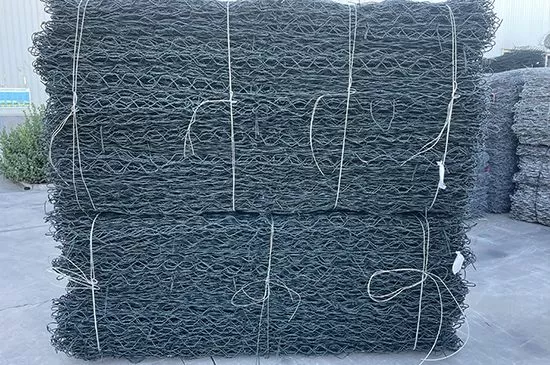

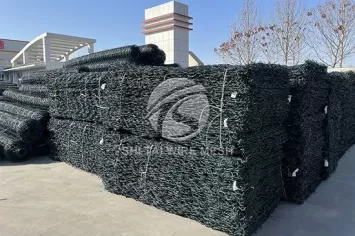

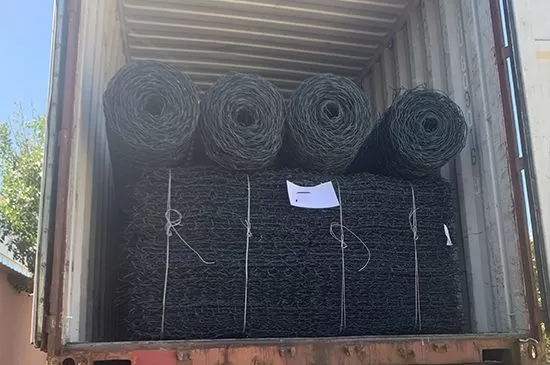

Package & Loading
We can package the hexagonal gabion box according to the customer's requirements:

1. By bandaging wire

2. By wooden pallets plastic film

We can also customize the logo on the packaging according to customer needs.

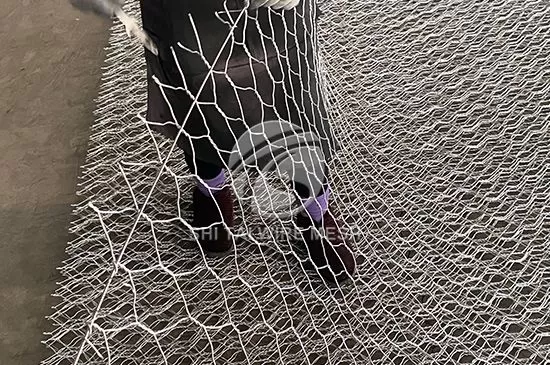

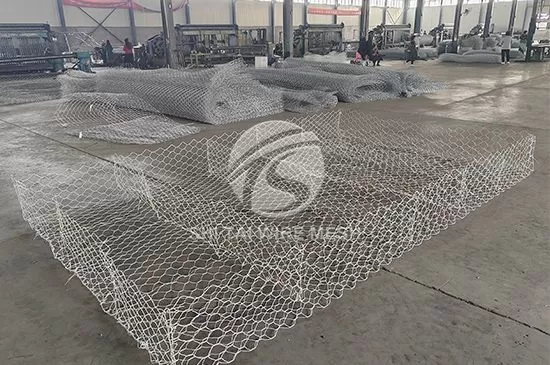

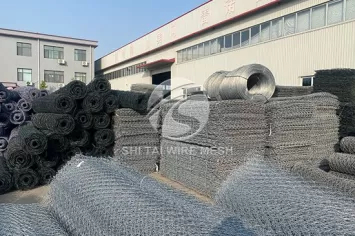

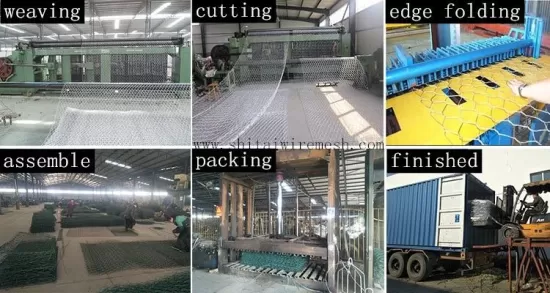

Hexagonal Gabion Mesh Production:

Our factory choose high quality galvanised wire, plastic-coated wire or zinc-aluminium alloy coated wire, and weave it through automatic gabion mesh weaving machine to reach the required length and then cut it. After cutting, the gabion mesh will be wrapped around the four edges on the thicker wire, and then about 100 sets of gabion mesh sheets will be stacked together, and finally compressed by the bale press machine to reduce its size for easy transportation.

Hexagonal Gabion Mesh / Box / Basket Supply

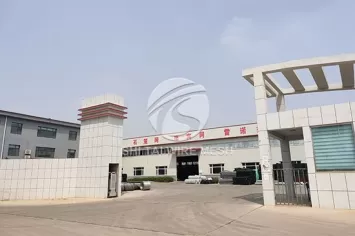

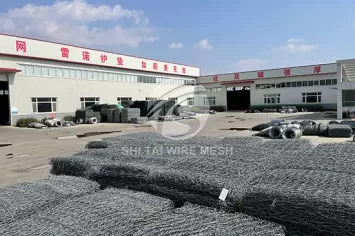

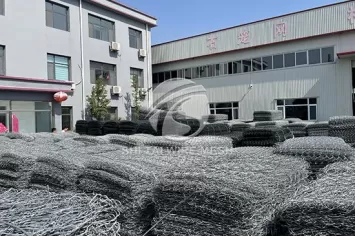

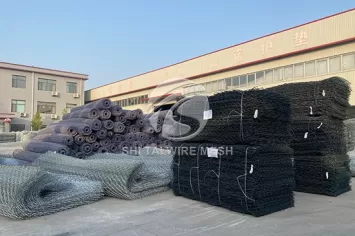

Hebei Shitai Environmental Engineering Co., Ltd., is a professional hexagonal gabion box supplier in China. We are professionally engaged in the production and export of all kinds of Gabions. Our company has owned all kinds of weaving and welding machines of over 160 sets and more than 100 staff members ensure high production efficiency and low production loss. More than 20 research and development department workers have been developing more products suitable for customers' requirements and market trends.

  • Hexagonal Gabion Box Manufacturer
    Hexagonal Gabion Box Manufacturer
  • Hexagonal Gabion Box Manufacturer
    Hexagonal Gabion Box Manufacturer
  • Hexagonal Gabion Box Manufacturer
    Hexagonal Gabion Box Manufacturer
  • Hexagonal Gabion Box Manufacturer
    Hexagonal Gabion Box Manufacturer
  • Hexagonal Gabion Box Manufacturer
    Hexagonal Gabion Box Manufacturer
  • Hexagonal Gabion Box Manufacturer
    Hexagonal Gabion Box Manufacturer
  • Hexagonal Gabion Box Manufacturer
    Hexagonal Gabion Box Manufacturer




Customer Feed




  • How to install the products?
    When you first purchase a product but don't know how to use the installation, we will provide text or video installation instructions. Don't worry, we not only provide you with the required products, but also provide after-sales service. Anyway, please feel free to contact us if you have any questions!
  • Can we get sample before the formal order?
    Yes, For regular products, we can provide free small size samples, and clients only need to pay for shipping. For non-standard products, sample opening fees need to be paid. The sample fee will be deducted from the official order.
  • How can factory assist me in starting a business?
    We can help you with inquiry, product details,provide samples, transportation,and other aspects. We have spent six months helping Australian client start his new fence business. If you are interested in a certain product but cannot purchase it due to budget or other reasons, do not give up asking for a quote again and do not forget our factory. Within two years, we received multiple inquiries from the same client about the same product, and the following year, he finally had enough money to order a 40 foot container quantity fence. You have a need, and we have always been there.
  • How to get the best product with a limited budget?
    You only need to tell us where the product you need is to be used and what is the total length. We will provide a quotation based on your requirements. If your budget is limited, we have many products for the same purpose, and there is always one product that meets your requirements in terms of price and quality. About transportation Shipping terms: shipping by sea. Payment terms: 30% of the total almost is to be paid by T/T as deposit and the balance is to be paid by T/T before the goods leave the factory. Loading Port: Tianjin Xingang Port, China. Samples we can supply samples for free if small quality. clients need to pay for the shipping charge.
  • What are the effects of what materials are used for surface treatment?
    Powder: we always use the famous international powder (AkzoNobel) sprayed, the powder coated fence will be very smooth, with great corrosion resistance, outdoor use year can reach 15-20 years. Galvanized: All hot-dipped galvanized, the fence will 15-20 years not rust.
  • Can You Supply customization service according to our requirements?
    Yes. Our customization service is including several items: special sizes and accessories, painted logos, customized colors and signboards. Just tell us your requirements, we will try our best to satisfy you.
  • What's the lifespan of your Security Fence?
    It depends. We have several different materials and surface treatment for our steel security fencing, they all have different lifespan. You can tell us your using environments and requirements, we will recommend the best products for your projects.
  • Can your product be used near sea or coastal area?
    Yes, we have heavy galvanized or galfan galvanized wire material to make sure the products no rust in these conditions. We can also add powder coating surface treatment to achieve the best anti-rusting results. We have pass lab salt spray test and many projects experience.
