Welded Gabion Wall
ANPING SHITAI WIRE MESH PRODUCE CO.,LTD.

Welded Gabion Wall

Application

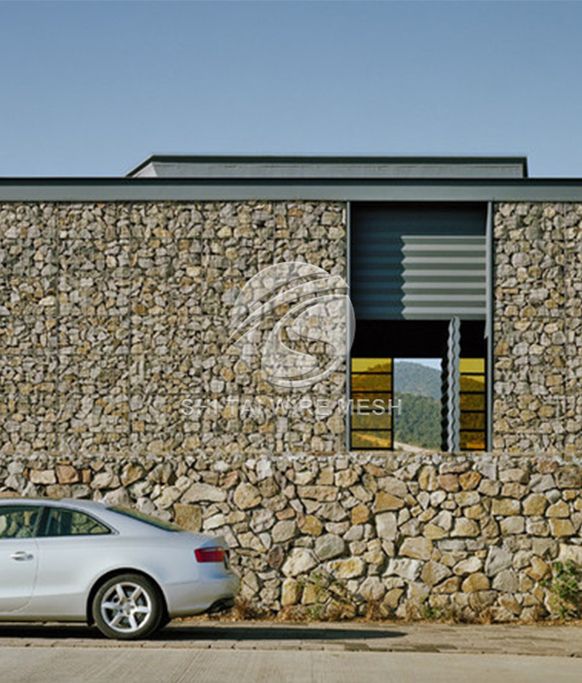

Welded gabion box/welded gabion cage/welded gabion basket  is mainly used for park landscape appearance, commercial building outsourcing, urban landscape, highways, bridge protection, retaining walls, etc

Product Specifications

Protective Applications:Landscape Constructions:
• Retaining Wall• Gabion Bench
• Slope Protection• Gabion Planter
• River Channel Controlling• Fireplaces
• Defense Barrier• Gabion Staircase
• Noise Barrier Wall• Gabion Pot
• Bridge Protection• Gabion Partition Wall
• Soil Strengthening• Gabion Barbecue
• Seawall Protection• Gabion Waterfall
• Flood Controlling• Gabion Flower Pot


Feature

The advantages and characteristics of welded gabion box

The welded gabion box has smooth and neat surface, uniform mesh, and firm welding points, which have strong firmness, corrosion resistance, permeability, and integrity.

Welded gabion box has low cost and is easy to install, making it an ideal choice for courtyard decoration and slope greening.

Has strong resistance to natural destruction and adverse weather effects.

Very good tensile resistance.

The on-site installation of welded gabion mesh is simple, fast, convenient, and has a beautiful structure, saving time and labor, and high work efficiency.


Wire Diameter(mm)3.0mm, 4.0mm, 5.0mm, 6.0mm, etc.
Aperture(mm)50x100mm, 75x75mm, 100x100mm =,etc.
Gabion Size (m)1x1x1m, 2x1x1m, 3x1x1m, 4x1x1m, etc.1x1x0.3m, 1x1x0.5m, 1x1x0.6m, 1x1x0.8m, 2x1x0.3m, 2x1x0.5m, etc.
Tensile Strength380N/mm
MaterialSteel wire
Surface TreatmentHot-dip galvanized,270g/m2 high zinc coating,Zn-Al Galfan coated
CustomizationAll above sizes can customized according to your request.



Need a custom solution?

Can't find what you were looking for?

We can customize the product for you, determine the wire diameter, aperture, length and width, color, welcome to contact

Contact US

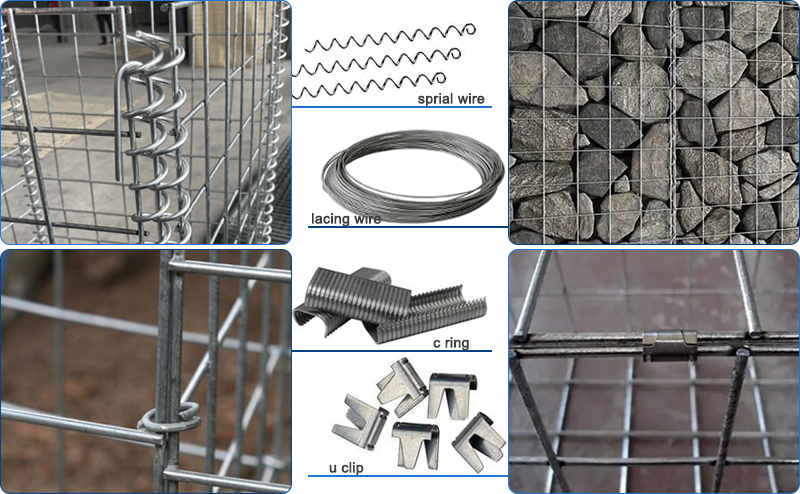

Connection types of welded gabion box:

• Spiral wire connection

The spiral wire is made of high quality galvanized steel wire, Galfan coated steel wire, PVC coating steel wire and stainless steel wire. It is widely used in the welded gabion cages fixation and fastening.

• Lacing wire connection

The lacing wire is the most economical type.It made of galvanized wire, PVC coating wire, Galfan coated wire.

• C ring connection

Compared with lacing wire, the C ring can save more times and it is very easy to operate, just use the professional C ring guns to fasten the gabion cage.

• U clip connection

U clip is an metal sheet shaped clips which has better tensile strength than the C rings or lacing wire, and it has long service life. Material: high quality stainless steel.


Welded Gabion Wall

Certificates

Welded Gabion Wall

  • How does your factory do regarding quality control?
    We have a special QC department in charge of products’ quality.
  • How about delivery time?
    Generally, it will take 7-10 days after receiving the payment. The specific delivery time depends on the items and the quantity of your order.
  • How do you make our business long-term and good relationship?
    1. We keep good quality and competitive price to ensure our customers benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.
  • How do you view your relationship with customers?
    They are not only our customers, but also our partners, we will work together to develop, win-win cooperation.
