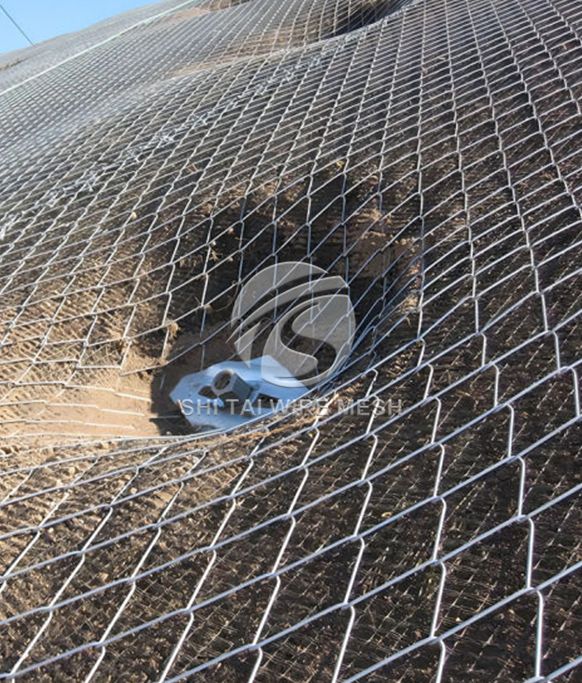

The TECCO slope stabilization system is a mitigation system consisting of a high-tensile steel wire mesh. It is used in combination with soil and/or rock nails to stabilize steep slopes in unconsolidated material and rock liable to slip and break out.
Specifications
| Item | Value |
| Place Of Origin | HEB |
| Type | Tecco Mesh |
| Application | Protecting Mesh |
| Weave Style | Plain Weave |
| Technique | Woven |
| Processing Service | Weaving |
| Wire Diameter | 3mm |
| High Tensile Strength | 1370Mpa;770Mpa |

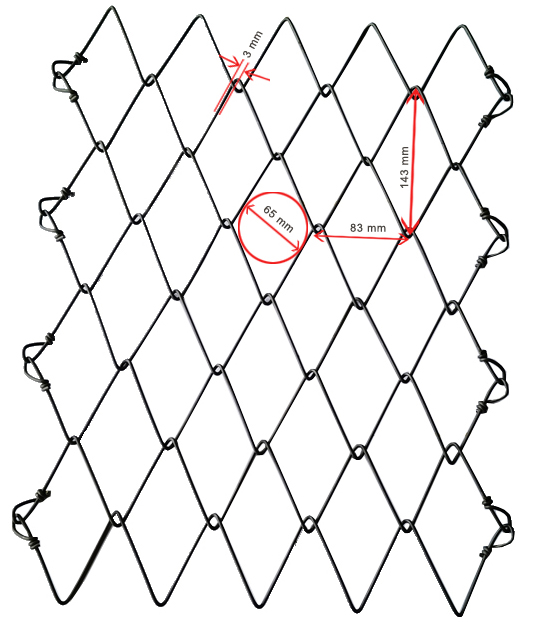

| Mesh Size | 83x143mm |
| Mesh Shape | Diamond |
| Breaking Load Of Single Wire | 12.5KN |
| Roll Width | 2-3.5m |
| Roll Length | 10-30m |
| Coating | 150g/m²(galvanized) |
| Mesh Edges | Knotted |
Features
Diamond Mesh Structure
The special mesh structure permits an even stress transfer from the forcing points to anchor rods, preventing deformation efficiently. The flexible tecco mesh structure fits well in any geological conditions including irregular terrain, providing optimal stabilization.
Can't find what you were looking for?
We can customize the product for you, determine the wire diameter, aperture, length and width, color, welcome to contact
