868 Double Wire Fence
ANPING SHITAI WIRE MESH PRODUCE CO.,LTD.

868 Double Wire Fence

Introduction

Tailored to meet the demands of commercial facilities, our 868 Double Wire Fencing Panels stand as a formidable choice for security and perimeter fencing. With a mesh-based design, this fencing solution seamlessly combines robust protection with an unobtrusive appearance. It caters to environments that necessitate a heavy-duty perimeter fence offering both strength and subtlety.

Double wire fence, also called twin wire fence, has extra strong structure than common welded mesh fences because of the double horizontal wire. All double wire fence is produced under international standard  ASTM F 2919.

Double wire fence is a commonly used fence product, widely used in construction sites, highways, buildings, and other places that require safety protection. It adopts a double wire structure with high strength and corrosion resistance, providing reliable safety protection for various places.

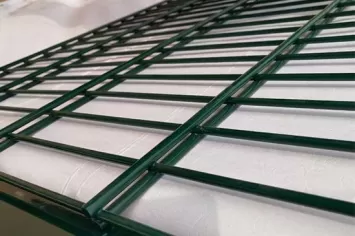

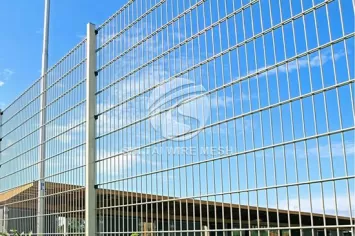

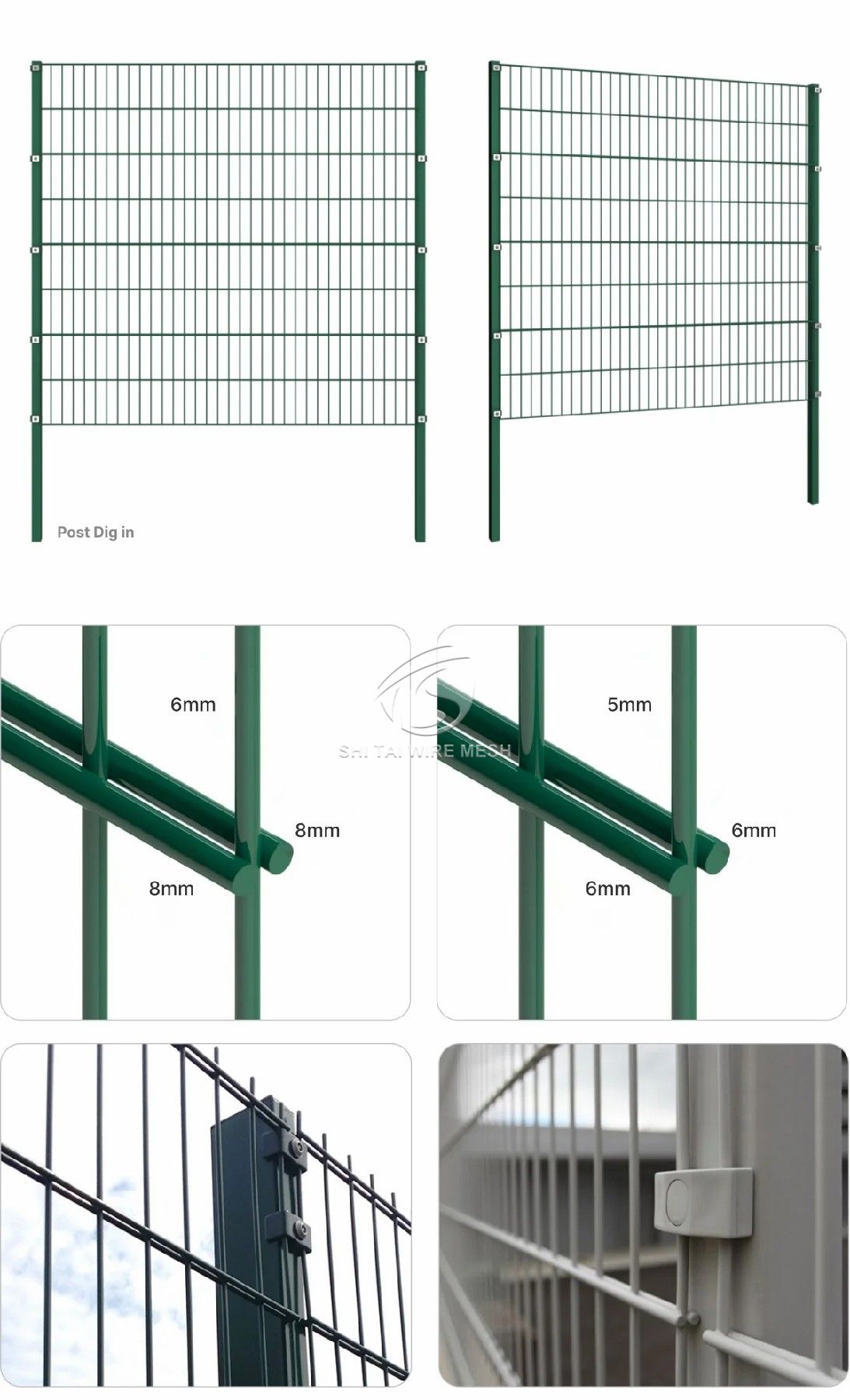

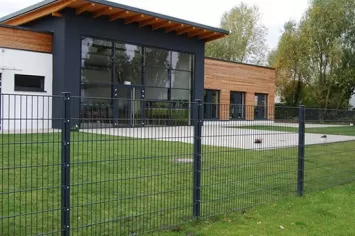

Product Show

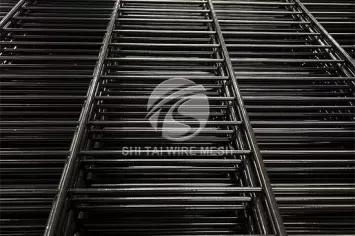

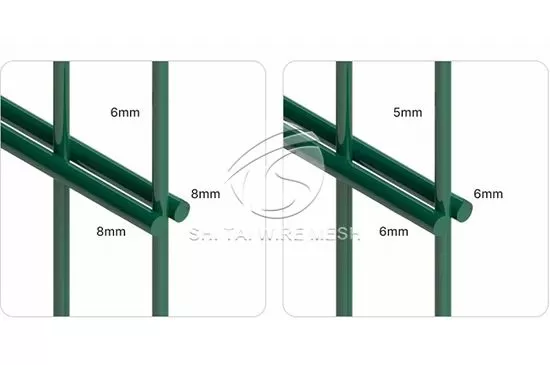

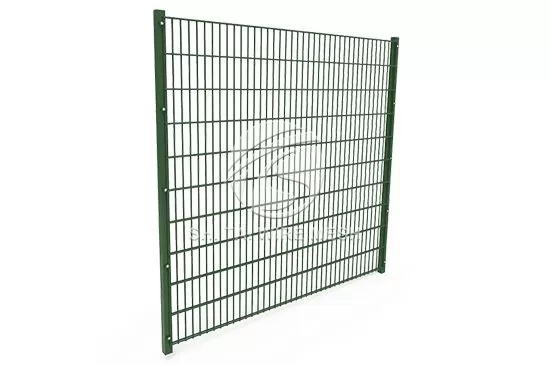

868 Double Wire Fence, also called Double Wire Fence, twin wire mesh fence, twin wire panel fencing is an extremely strong and rigid mesh fence system with a special structure - double horizontal wire welded to single vertical wire - more endurable and stable than a common fence. In other words, a double wire fence panel has double horizontal large diameter rods attached on both sides of the panel. It is quite popular in Europe countries, like Germany.

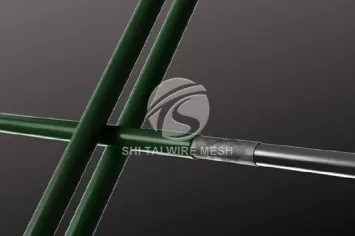

Looking from far away, the wine wire panel is like the regular fencing panel. Nevertheless, unlike traditional welded wire fences such as 358 security fences and euro fences, the Double Wire Fence panel welded with two horizontal wires is particularly strong and firm. It is recommended for professional fencing of schools, playgrounds, parks, sports grounds, public buildings, factories, workshops, airports and military sites.


Features


● It consists of two or more parallel steel wires, usually made of high-strength carbon steel, with a diameter generally between 0.2-0.4 cm.

● The structure is stable and can withstand greater pressure and impact, effectively preventing illegal crossing.

● The height can be adjusted according to actual needs, and the general height is between 1.2-2.0 meters.

● It is widely used in places that require isolation, such as military bases, highways, playgrounds, ports, etc.

● Double wire fences can be fixed by different assembly methods, such as tightening device or welding fixation.

● The galvanized and powder coating treatment allows the double wire fence working properly for nearly 10 years.

● It can effectively prevent climbing because there is a large distance between adjacent steel wires, and the double-wire structure makes it more stable,Easy to maintain, requiring only regular cleaning and inspection.

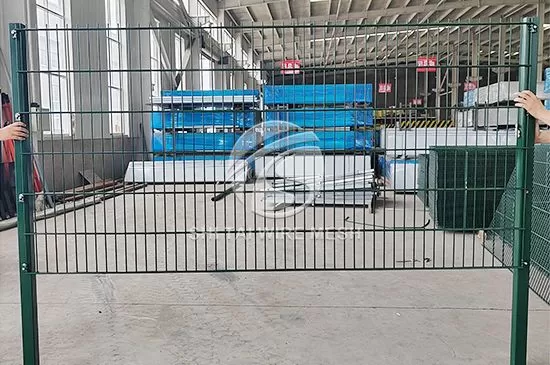

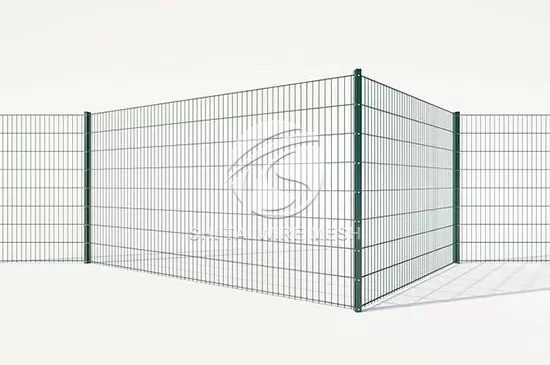

868 Double Wire Fence 868 Double Wire Fence 868 Double Wire Fence 868 Double Wire Fence

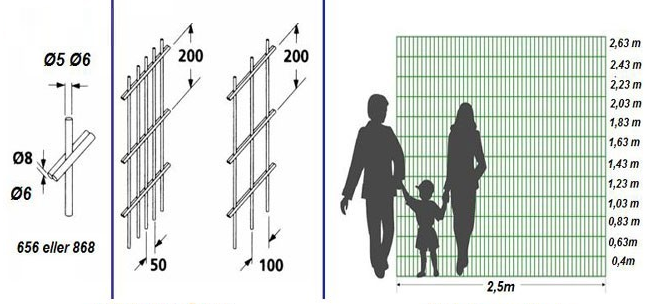

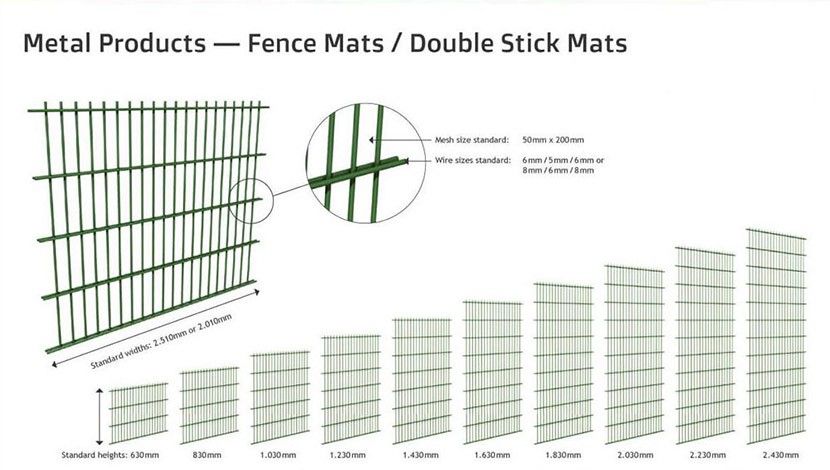

Product Specifications

Specification Of Double Wire Mesh Fence
Mesh OpeningWire ThicknessPanel WidthPanel HeightPost Type
50x100mm
50x150mm
50x200mm
55x200mm
75x150mm
6/5/6mm
8/6/8mm
2.0m or 2.5m or 3.0m630mmRound Post48x1.5/2.0mm
60x1.5/2.0mm
Square Post(SHS)50X50x1.5/2.0mm
60x60x1.5/2.0mm
80x80x1.5/2.0mm
Rectangular Post(RHS)
40x60x1.5/2.0mm
40x80x1.5/2.0mm
60x80x1.5/2.0mm
80x100x1.5/2.0mm
830mm
1030mm
1230mm
1430mm
1530mm
1630mm
1730mm
1830mm
1930mm
2030mm
2230mm
2430mm
Surface treatment: hot dipped galvanized, galvanized +powder coated, galvanized +PVC coated
Color: RAL 6005 green, RAL 7016 gray, RAL 9005 black, All RAL colors can be customized.
Note: The fence can be customized according to your requirements if the above specification is not satisfied to you.



Panel Height

Panel WidthWire DiameterApertureSurface Treatment
1500mm
1800mm
2000mm
2000mm
2500mm
3000mm
6/5/6mm
8/6/8mm
50*200mmPVC coated
Powder coated
hot dip galvanized wire
hot dip galvanized after welded
All specifications are customizable

868 Double Wire Fence

868 Double Wire Fence

868 Double Wire Fence


The above are our standard sizes and specifications, in addition we also support site design and customized size, just simply provide the length of your site on all four sides of the length of the straight line length and height, contact us to quickly customize and view the effect drawings!

Need a custom solution?

Can't find what you were looking for?

We can customize the product for you, determine the wire diameter, aperture, length and width, color, welcome to contact

Contact US

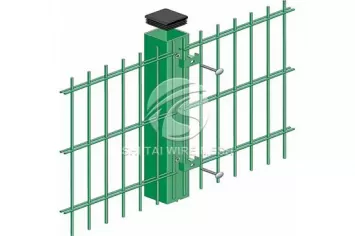

Instruction Manual
868 Double Wire Fence

1. Fixed post: According to the length and width of the double wire fence panel that needs to be installed, reserve spacing at the fixed position ,then fix the posts with cement or steel at the position.


2. Install panel; Place the panel on the post, connect it with the post with a hook, and tighten the panel to ensure that it is perpendicular to the ground.

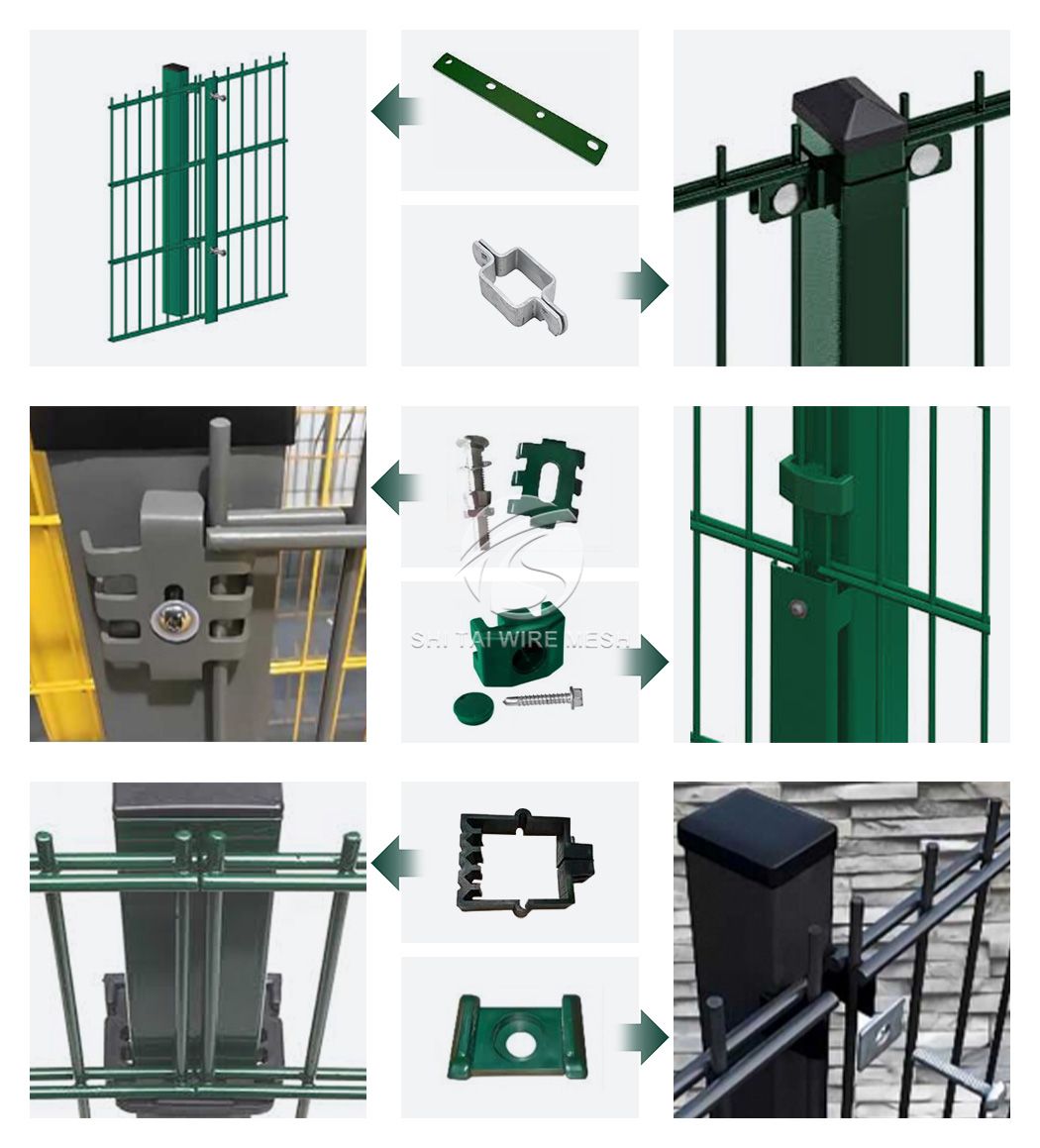

3. Connecting accessories: Use connecting accessories to connect the panel on the other side to the already installed panel, ensuring that the panel can be fixed on the post and flush with the already installed panel. And so on, install the remaining mesh pieces properly.



868 Double Wire Fence

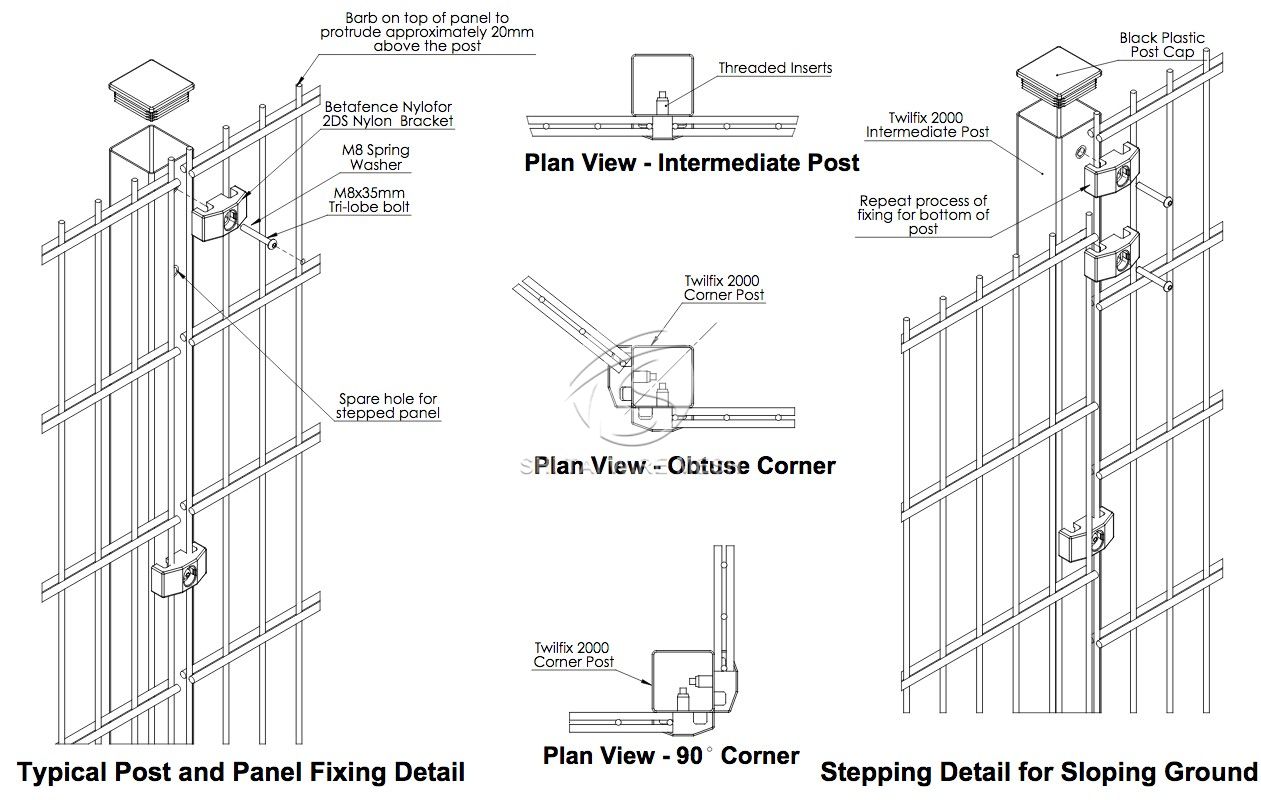

Detailed diagram of installation method 4

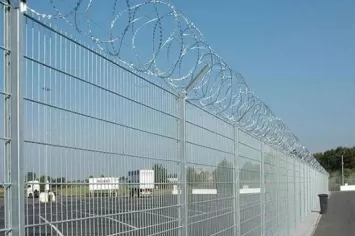

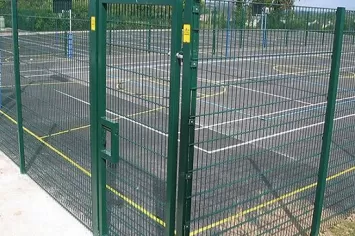

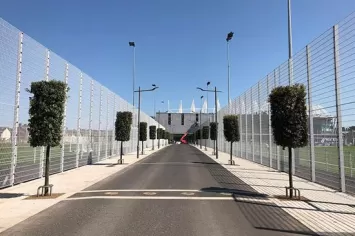

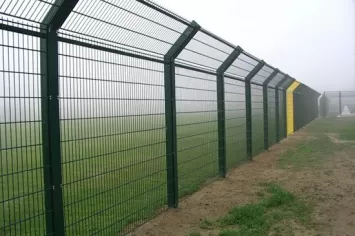

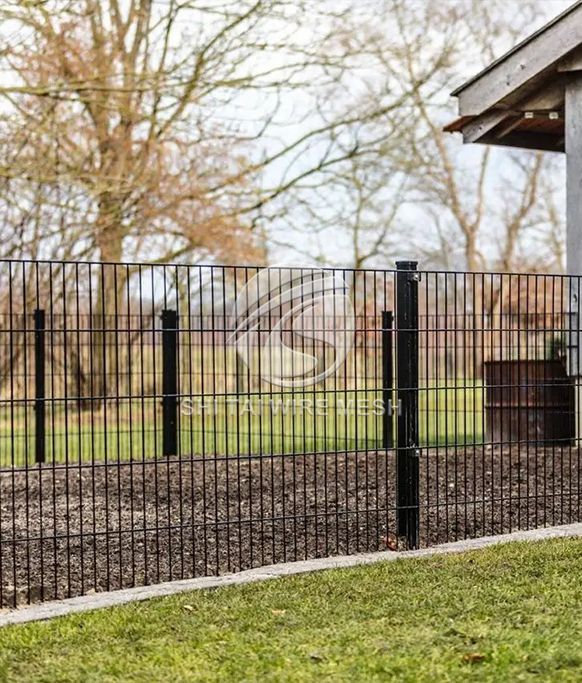

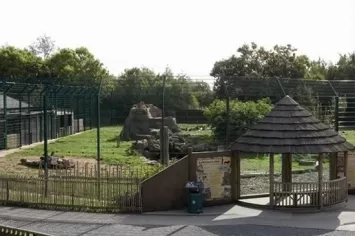

Applications
Roads and railways, bridges on both sides of the protection zone.
Airport port, terminal security.

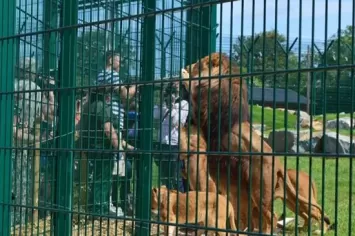

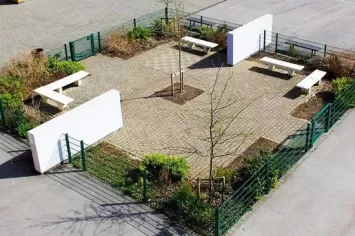

Construction of parks, lawns, zoos, ponds, roads, residential areas of the isolation and protection.
Hotels,supermarkets, entertainment protection and decoration.




Quality Control

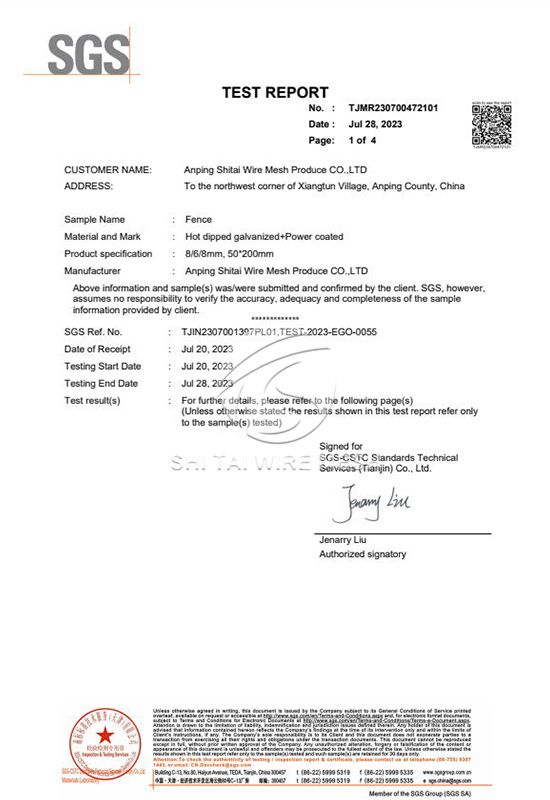

Our Products Have Passed Many Certificates, High quality is the way we succeed - Zero defective products. Our company always adhered to technology innovation, scientific management, and integrity cooperation. We introduced four advanced automated production lines for our products. We have a strict QC system from raw material procurement, production management and product testing to control and ensure high quality, with quality, we win the trust of customers.

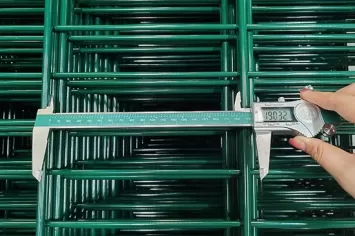

  • Hole Size Test
    Hole Size Test
  • Hole Size Test
    Hole Size Test

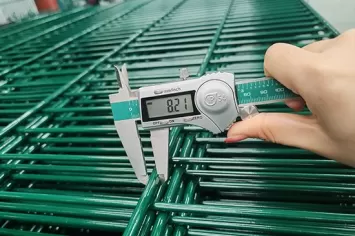

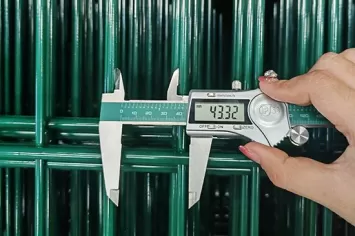

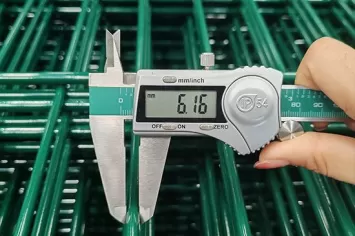

  • Vertical Wire Diameter Test
    Vertical Wire Diameter Test
  • Horizontal Wire Diameter Test
    Horizontal Wire Diameter Test

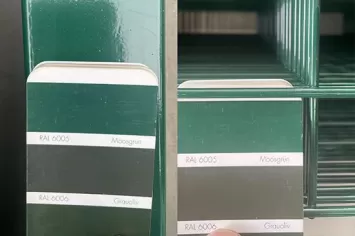

  • Confirm Colors
    Confirm Colors
  • Welding Inspection Test
    Welding Inspection Test




Advantages
The 868 Double Wire Fence offers a reliable and effective solution for various fencing needs, thanks to its strength, visibility, security, versatility, and ease of installation.
  • Firstly, the double wire mesh has a compact structure, high strength, and can withstand large external forces, making it less prone to deformation and damage.
  • Secondly, the material has undergone special treatment and has corrosion resistance, allowing it to be used for a long time in harsh environments.
  • Furthermore, the installation of the double wire fence is simple and convenient, and the disassembly is also relatively easy, which can meet temporary or permanent installation needs under different needs.
  • Finally, the double wire fence has a beautiful and generous appearance, while also providing good perspective without causing visual obstruction and oppression.

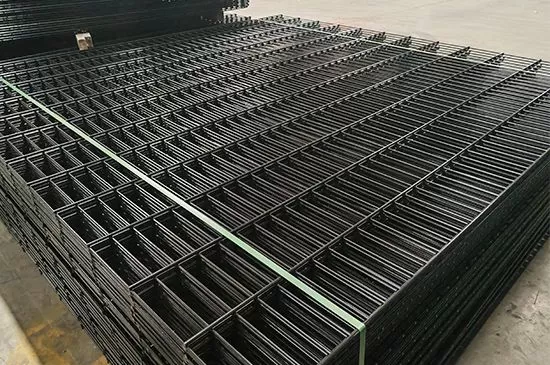

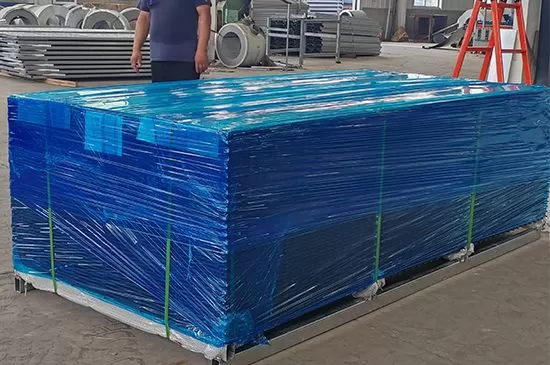

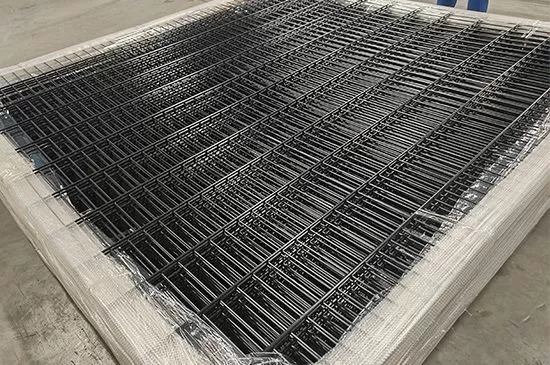

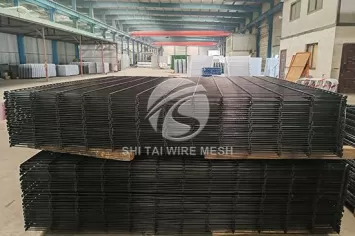

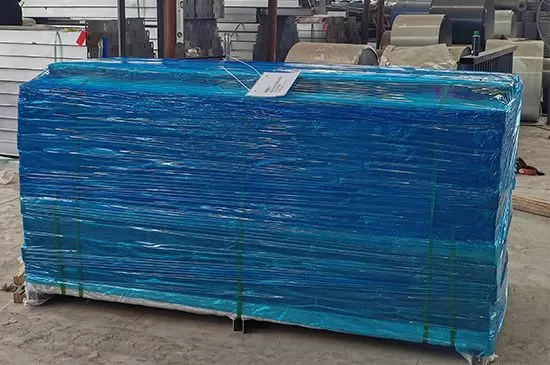

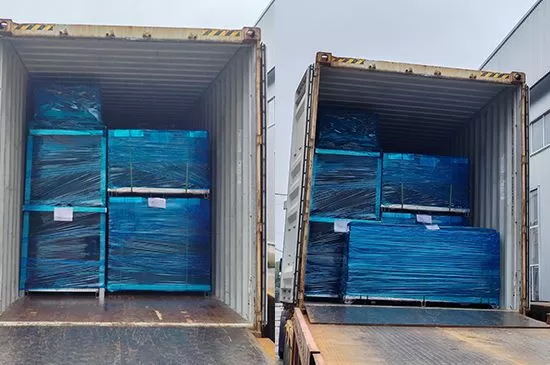

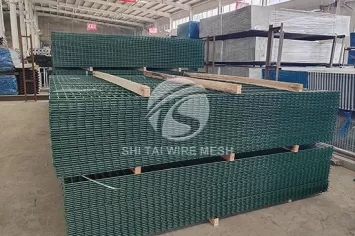

Package & Loading

Wooden/metal pallets + cover plates

Wooden pallets +bubble film.

Spare goods for each order, give it for free and ship it together.

QC Test from the raw material to shipment. All support the third party to test it.

We will pack according to clients' requirements, also could add your logo. Honesty to win more clients and long-term cooperation!

868 Double Wire Fence Manufacturer,Supplier,Factory - Shitai

Shitai is a reputable manufacturer, supplier, and factory of 868 Double Wire Fence. With years of experience in the industry, Shitai has established itself as a leading provider of high-quality wire mesh products, including the 868 Double Wire Fence.


As a manufacturer, Shitai focuses on producing durable and reliable wire mesh fences using advanced production techniques and high-quality materials. Our commitment to excellence ensures that their products meet the highest standards of quality and performance.


As a supplier, Shitai offers a wide range of wire mesh products, including the 868 Double Wire Fence, to customers worldwide. We have established strong relationships with clients across various industries, providing them with customized solutions that meet their specific needs and requirements.


As a factory, Shitai boasts state-of-the-art facilities and equipment, enabling it to produce wire mesh products efficiently and consistently. Our skilled workforce and stringent quality control measures ensure that every product that leaves their factory meets the desired specifications and customer expectations.


In summary, Shitai is a one-stop solution for all your 868 Double Wire Fence needs, offering manufacturing, supply, and factory services that are second to none. Our dedication to quality, customer satisfaction, and innovation makes them a top choice for businesses and individuals seeking reliable and durable wire mesh fencing solutions. Take an online factory tour now.





Customer Feedback




Installation
  • How to install the products?
    When you first purchase a product but don't know how to use the installation, we will provide text or video installation instructions. Don't worry, we not only provide you with the required products, but also provide after-sales service. Anyway, please feel free to contact us if you have any questions!
  • Can we get sample before the formal order?
    Yes, For regular products, we can provide free small size samples, and clients only need to pay for shipping. For non-standard products, sample opening fees need to be paid. The sample fee will be deducted from the official order.
  • How can factory assist me in starting a business?
    We can help you with inquiry, product details,provide samples, transportation,and other aspects. We have spent six months helping Australian client start his new fence business. If you are interested in a certain product but cannot purchase it due to budget or other reasons, do not give up asking for a quote again and do not forget our factory. Within two years, we received multiple inquiries from the same client about the same product, and the following year, he finally had enough money to order a 40 foot container quantity fence. You have a need, and we have always been there.
  • How to get the best product with a limited budget?
    You only need to tell us where the product you need is to be used and what is the total length. We will provide a quotation based on your requirements. If your budget is limited, we have many products for the same purpose, and there is always one product that meets your requirements in terms of price and quality. About transportation Shipping terms: shipping by sea. Payment terms: 30% of the total almost is to be paid by T/T as deposit and the balance is to be paid by T/T before the goods leave the factory. Loading Port: Tianjin Xingang Port, China. Samples we can supply samples for free if small quality. clients need to pay for the shipping charge.
  • What are the effects of what materials are used for surface treatment?
    Powder: we always use the famous international powder (AkzoNobel) sprayed, the powder coated fence will be very smooth, with great corrosion resistance, outdoor use year can reach 15-20 years. Galvanized: All hot-dipped galvanized, the fence will 15-20 years not rust.
  • Can You Supply customization service according to our requirements?
    Yes. Our customization service is including several items: special sizes and accessories, painted logos, customized colors and signboards. Just tell us your requirements, we will try our best to satisfy you.
  • What's the lifespan of your Security Fence?
    It depends. We have several different materials and surface treatment for our steel security fencing, they all have different lifespan. You can tell us your using environments and requirements, we will recommend the best products for your projects.
  • Can your product be used near sea or coastal area?

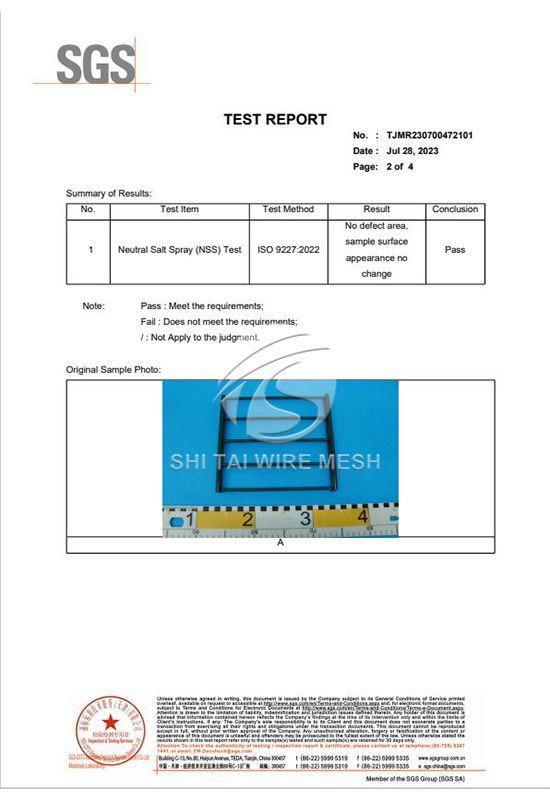

    Yes, we have heavy galvanized or galfan galvanized wire material to make sure the products no rust in these conditions. We can also add powder coating surface treatment to achieve the best anti-rusting results. We have pass lab salt spray test and many projects experience.
