Vibratory screen wire meshes are one of the most common screening equipment used in the industry. While other mechanical screening solutions are available in the solid waste management, recycling, and aggregate industries, vibrating screen wire mesh offer several distinct features that make them the first choice for a wide variety of industrial applications.
A Vibrating Screen Wire Mesh is a mechanical tool used to separate materials based on their size, shape, or other characteristics. It consists of a screen mesh that contains openings of different sizes to allow particles of varying sizes to pass through or be retained on the screen surface. As the name implies, vibrating screen wire mesh design is based on transmitting vibrations to a screening surface to separate and classify various particles according to their size.
Whatever the machine’s architecture, the idea is the same: vibrations reduce the surface tension between particles, forcing them to separate. Substantially smaller particles referred to as “fines,” then pass through the screening surface. During this period, larger particles are moved across the screen’s surface. This is a critical application in various industries, most notably in mineral processing.
Due to its distinctive design features, vibrating screens provide distinct advantages over conventional material processing equipment, including the following:
·Enhancements to the processing and material quality
·Cost-cutting measures
·Maintenance and downtime are reduced.
·Increased efficiency of screening
| Mesh Type | Material | Opening Shape | Key Advantages |
| Woven Wire Mesh | High Carbon Steel / SS304 / SS316 | Square / Rectangular | Good precision, strong structure, replaceable |
| Perforated Metal Mesh | Mild Steel / Stainless Steel | Round / Square / Slotted | Durable, customizable openings, long service life |
| Polyurethane Mesh | Polyurethane (PU) | Square / Slotted | Excellent wear resistance, corrosion-resistant, flexible |
| Wedge Wire Screen | Stainless Steel | Triangular slot (V-shape) | Anti-clogging, self-cleaning, precise slot control |
| Self-Cleaning Mesh | Spring Steel / Stainless Steel | Hybrid (Wave/Straight) | Reduces clogging, increases screening efficiency |
| Crimped Wire Mesh | High Carbon Steel / SS304 | Square | High strength, impact resistance, stable under vibration |
| Expanded Metal Mesh | Carbon Steel / Aluminum | Diamond | Economical, lightweight, high open area |
| Knitted Wire Mesh | Stainless Steel / Galvanized Wire | Multi-directional | High elasticity, suitable for damping and sealing |
Vibrating screen wire mesh is manufactured in a wide range of sizes to meet diverse screening and separation needs across industries. The size of the mesh primarily refers to the aperture (opening size) and wire diameter, which together determine the mesh's efficiency, durability, and application suitability
The aperture refers to the distance between adjacent wires and determines what size particles will pass through. Common opening sizes include:
| Mesh Count (per inch) | Opening Size (mm) | Typical Use Case |
| 2–6 mesh | 3.35–8 mm | Large rocks, aggregates, coal |
| 8–20 mesh | 0.85–2.36 mm | Sand, crushed stone, fertilizers |
| 30–60 mesh | 0.25–0.60 mm | Chemicals, powders |
| 70–200 mesh | 0.075–0.212 mm | Fine powders, pharmaceuticals |
| 300+ mesh | < 0.05 mm | Ultra-fine filtration and sifting |
Wire diameter affects the strength and durability of the mesh. Common diameters range from:
0.15 mm for fine filtration applications
0.8 mm – 1.2 mm for general screening
1.6 mm – 4 mm for heavy-duty industrial applications
Besides wire and aperture sizes, vibrating screen wire mesh also comes in various panel dimensions, typically:
Width: 500 mm to 2400 mm
Length: 1200 mm to 6000 mm
Custom sizes available upon request
While size defines its mechanical performance, the mesh material affects wear resistance and environmental compatibility. Common materials include:
High-carbon steel for strength
Stainless steel (304/316) for corrosion resistance
Polyurethane-coated for high-wear and noise-sensitive areas
Shitai Vibrating Screen Mesh is woven from pre-crimped manganese steel or stainless steel wire that offers good strength and stable structure. Also, to suit the requirements of the customer it is custom made in different materials, sizes and ranges. This type of mesh finds huge applicability in cement, power plants, paper & pulp, iron ore & steel and mining industry for doing various tasks such as shifting, grading, separating, scalping, sizing and screening. It possess excellent ability to work under extreme adverse conditions and shows high resistance to corrosion, chemicals and abrasion. If you have any need, feel free to contact us.
Selecting the appropriate mesh size is critical to achieving optimal screening performance. Here are the main factors you should consider:
1. Material Type and Particle Size
·Coarse materials like rocks or gravel require larger openings (2–10 mm).
·Finer materials such as powders or sand need smaller mesh openings (0.1–1 mm).
2. Desired Output & Efficiency
·A smaller aperture provides higher precision but may reduce throughput.
·Larger apertures allow faster screening but may reduce accuracy.
3. Mesh Strength & Lifespan
·Thicker wire diameters are suitable for heavy-duty operations and longer life.
·Thinner wires provide finer filtration but wear out faster.
4. Operating Environment
·Corrosive environments (like salt, chemicals) require stainless steel mesh.
·High-impact applications may need double crimp or reinforced mesh.
Tip: Always balance mesh opening size and wire diameter for both performance and durability.

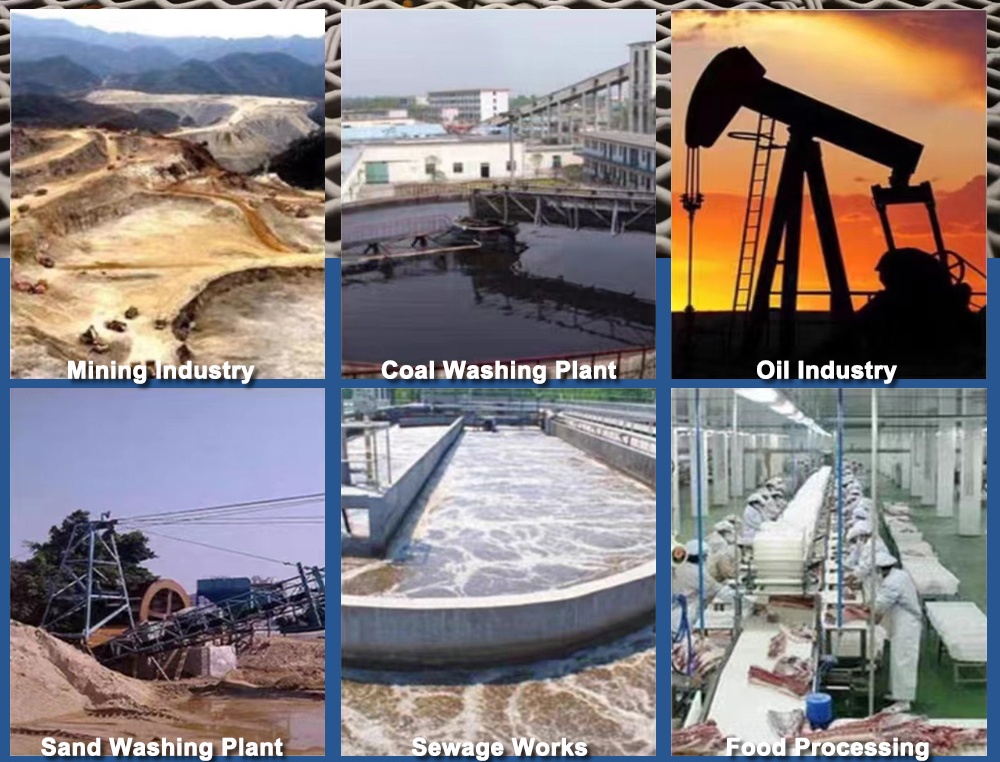

Vibrating screen wire mesh is an essential component in numerous industries where material separation, classification, and filtration are critical. Its unique design allows it to efficiently process a wide range of materials under various operating conditions.
Mining and Quarrying: In the mining industry, vibrating screen wire mesh is commonly used for separating crushed stone, gravel, coal, and ore into specific sizes. It can withstand heavy impact and abrasive materials, making it ideal for primary and secondary screening operations. The mesh’s durability ensures long service life even under harsh environments.
Aggregate and Construction: Construction and aggregate processing facilities rely on wire mesh screens to grade sand, crushed stone, and recycled materials. High tensile strength meshes such as woven wire and crimped mesh offer efficient separation while minimizing downtime for maintenance and replacement.
Chemical and Fertilizer Industry: In the chemical sector, vibrating screen mesh plays a key role in separating powdery materials and granules during manufacturing processes. Stainless steel wire mesh is especially popular in these applications due to its resistance to corrosion and chemical exposure.
Food and Beverage Processing: Wire mesh screens are used for sifting and filtering ingredients such as flour, sugar, spices, and granules. Food-grade stainless steel ensures hygienic processing and is easy to clean, helping to maintain safety and quality standards.
Coal and Power Plants: Vibrating screens are vital in coal screening and classification for thermal power generation. Whether it’s sizing raw coal or removing debris, specialized meshes like polyurethane or wedge wire are selected for their abrasion resistance and precision.
Recycling and Waste Management: Screen meshes are also found in recycling systems, where they help separate plastic, metal, and other reusable materials by size. Self-cleaning mesh types are often preferred here to reduce clogging when handling sticky or moist waste materials.
Pharmaceutical and Fine Powder Processing: Precision wire meshes, such as wedge wire screens or fine woven meshes, are used in pharmaceutical applications for their high accuracy in separating fine powders, ensuring consistent granule sizing and quality control.
Selecting the correct type of vibrating screen mesh directly affects operational efficiency, material quality, and equipment lifespan. Factors such as mesh material, opening size, and wire diameter should be matched with the application’s demands to ensure optimal performance. Contact Shitai for expert guidance.
Enhancements to the processing and material quality: While special screening equipment is better suited to specific materials, vibrating screens offer several advantages in processing aggregate and mining materials. Vibrating screens are particularly well-suited to meet these sectors’ fineness requirements. Their design, which generates the force necessary to separate large particles from fines, enables easier product recovery – even when handling a material that demands substantially lower size separation. This results in increased yields and overall superior quality of the finished product.
Reduced Operating Costs: Vibrating screens are well-known for their rugged construction. Due to the relatively simple operating principle and the streamlined design of modern machines, vibrating screens are often affordable than other types of screeners. As a result, the initial investment is reduced. Additionally, vibrating screens consume less energy than more sophisticated technology, saving firms money on continuing operating costs. Finally, because higher frequency vibrations are immediately transmitted to the screening surface, just the screen media must be replaced regularly. This can help each one saving money on the maintenance and repair costs associated with other types of screening equipment.
Maintenance and downtime are reduced. Maintenance and downtime due to maintenance or equipment breakdowns can result in significant productivity and financial losses. Numerous screen types are subjected to severe wear and tear, especially in demanding applications such as aggregate processing. Vibrating screens, on the other hand, require less maintenance and downtime. Their design focuses exclusively on imparting vibratory forces to the screening surface. Additionally, high-quality vibrating screen wire mesh equipment is designed and constructed so that vibration forces have little effect on other components of the machine. In more complex designs, the device is structured so that vibrations outside the screen media are adequately absorbed and dampened. This results in fewer moving components and, therefore, less wear and strain on the machine, decreasing downtime and further maintenance.
Increased Screening Effectiveness: While various screening equipment is available on the market, vibrating screen wire mesh are an excellent alternative when an operation demands a straightforward solution that can manage a greater feed rate. Indeed, vibrating screens operate most efficiently when the flow rate is continually greater.
unqualified screen quality, insufficient tension of the screen, incorrect direction of the vibrating motor, accumulation of clay, etc.
The tension of vibrating screen mesh is insufficient, resulting in high-strength grinding causing vibration of the screen, usually causing breakage or damage along the edge or edge pressure strip of the screen. The unqualified quality of the screen is also a common cause. The screen generally has an upper screening layer and a lower stress layer, and these two layers require close adhesion to each other.
If the pre-tensioning process of the screen is poor, when the lower stress layer of the screen is tightened, the screening layer is not tightened, and the chip-throwing force is greatly reduced during operation, which cannot discharge the chips. When the vibrating motor rotates in the wrong direction, the on-site operators according to the experience of using a single-axis vibrating screen or linear vibrating screen in the past think that as long as the chips move forward, it is okay. However, this method is not suitable for translating elliptical vibrating screens. If the electric motor rotates incorrectly towards the inner side, the ejection angle is also 45° forward, but the chips have a force to roll backwards. At this time, the velocity of the chips moving forward is much slower, which causes the chips to stay longer on the vibrating screen and even unable to be discharged.
When the screen box is running, press the stop button of the electric control box. The vibrating screen will slowly stop. Remove the vibrator cover and observe the elliptical trajectory formed by the small dots on the side plate when the vibrating screen is running. It should roll towards the sand outlet as the correct direction.
Check whether the eccentric blocks are rotating outward, switch any two phase lines of the incoming power supply in the electric control box, sprinkle some sand on the screen, and take measures such as increasing the discharge rate of sand can effectively prevent damage of the vibrating screen. Of course, clay accumulation and small vibration amplitude make it difficult to screen under polymer drilling fluid conditions, so it cannot effectively overcome the adhesive force of cuttings (clay) and can cause rapid damage to the vibrating screen.
Shitai, as a specialist wire mesh screen supplier, we provide OEM and ODM services, offering a wide range of vibrating screen wire mesh options tailored to your material processing needs. Whether you need heavy-duty screening for mining or precision filtration for pharmaceuticals, our engineering team can help you choose or design the right mesh type.
Contact us today for a tailored screening solution that boosts your productivity and reduces operational costs.
